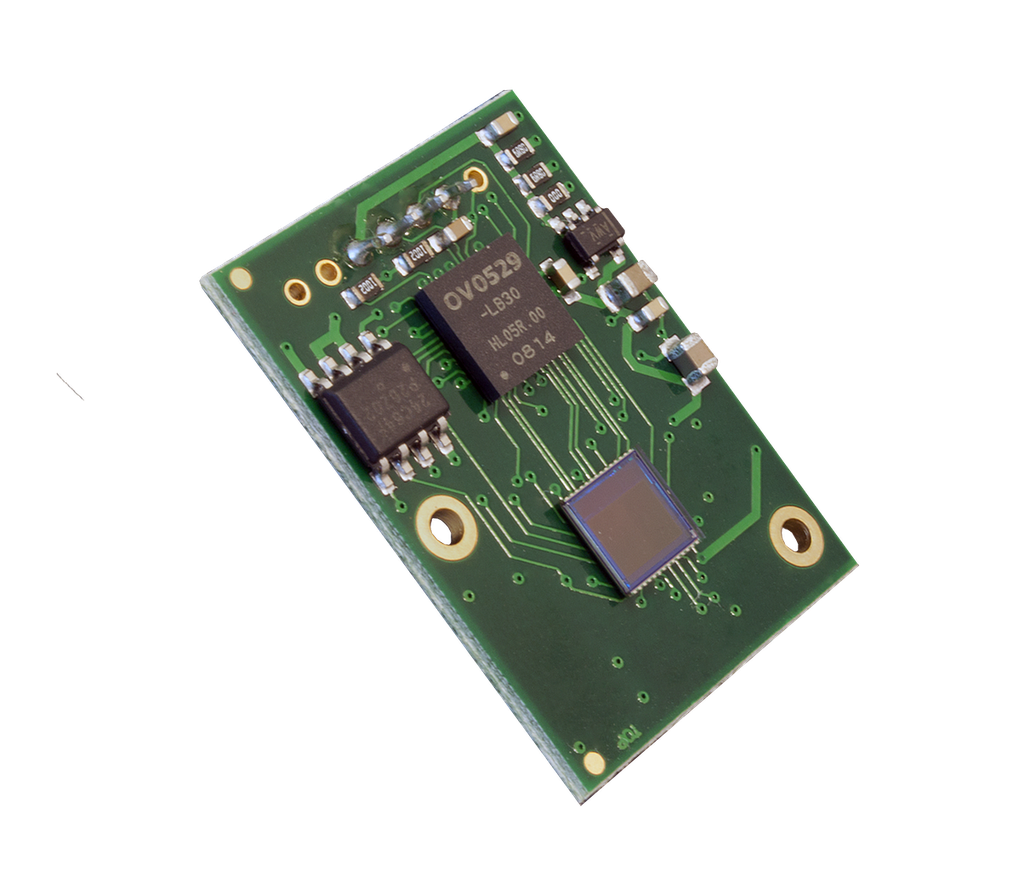

C329BW-UART-board Monochrome JPEG Compression VGA Camera Module (no lens)

https://electronics123.odoo.com/web/image/product.template/3138/image_1920?unique=c3ea443
(0 review)

SKU : C329BW-UART-board
Quantity on Hand : 7
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

C329BW-UART-board

69.95 69.95 USD 69.95

69.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART


PLEASE NOTE: NO LENS INCLUDED.

Description: This is the monochrome (B & W) version of the C329-UART board using a OV07221 sensor instead of a OV7725.

This item is our replacement product for the C328V camera module which is phasing out. Please note the command-set of the C329BW and C328V is not identical.

The C329 UART JPEG compression module performs as a video camera or a JPEG compressed still camera. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture (OV07221 sensor). The picture is then compressed by the JPEG engine (OV529) and transferred to the host. This OV07221 sensor should be more sensitive to light, which might work well especially for night time vision with an IR array.

Features:

  • Small size 20 x 28mm

  • Adjustable resolution, Max VGA

  • 3.3V operation

  • Low Power consumption 20 mA passive

  • UART interface up to 921.6Kbs

  • Power Saving Mode

  • Multiple lens options

  • Multiple interface options

  • 4 pin connector cable 11 inch length (included)

(Optional lenses available for this board)

Note: This unit works with the C329 Evaluation Board
