C329-UART-board Color JPEG Compression VGA Camera Module (no lens)

https://electronics123.odoo.com/web/image/product.template/3136/image_1920?unique=de238de
(0 review)

SKU : C329-UART-board
Quantity on Hand : 9
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

C329-UART-board

68.95 68.95 USD 68.95

68.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

PLEASE NOTE: NO LENS INCLUDED.

Description: This item is our replacement product for the C328 camera module which is no longer available. Please note the command-set of the C329 and C328 is not identical.

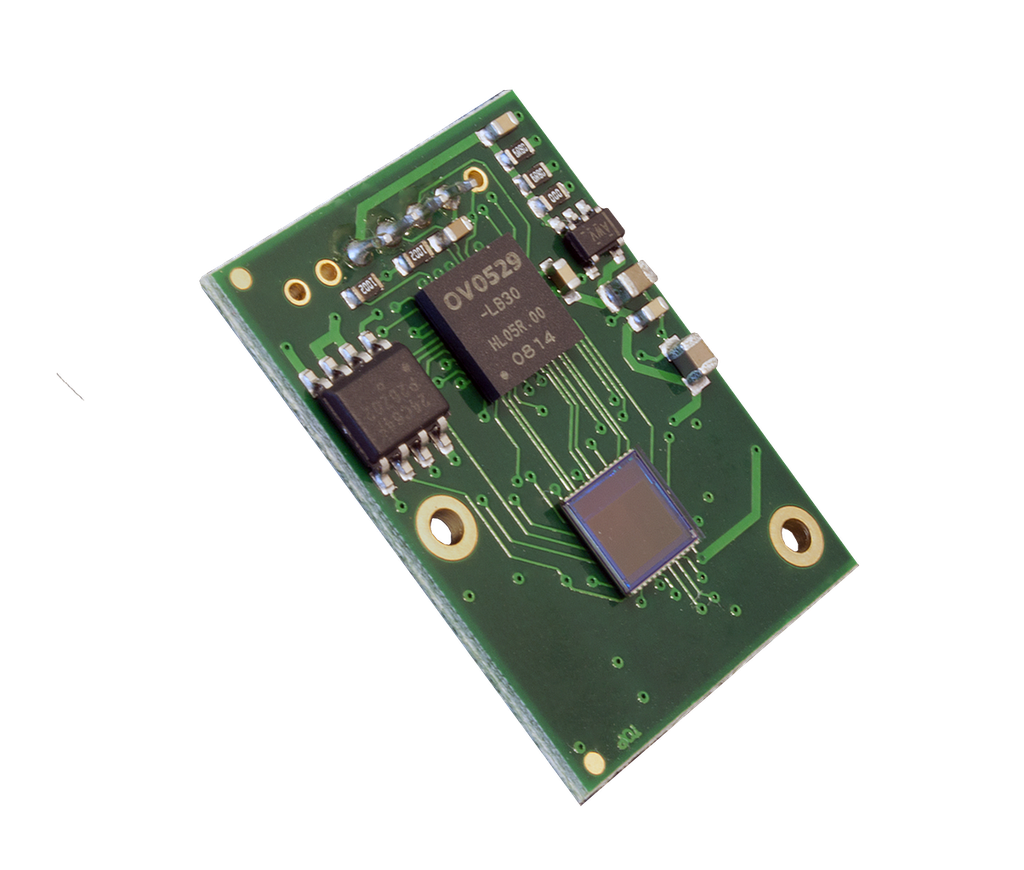

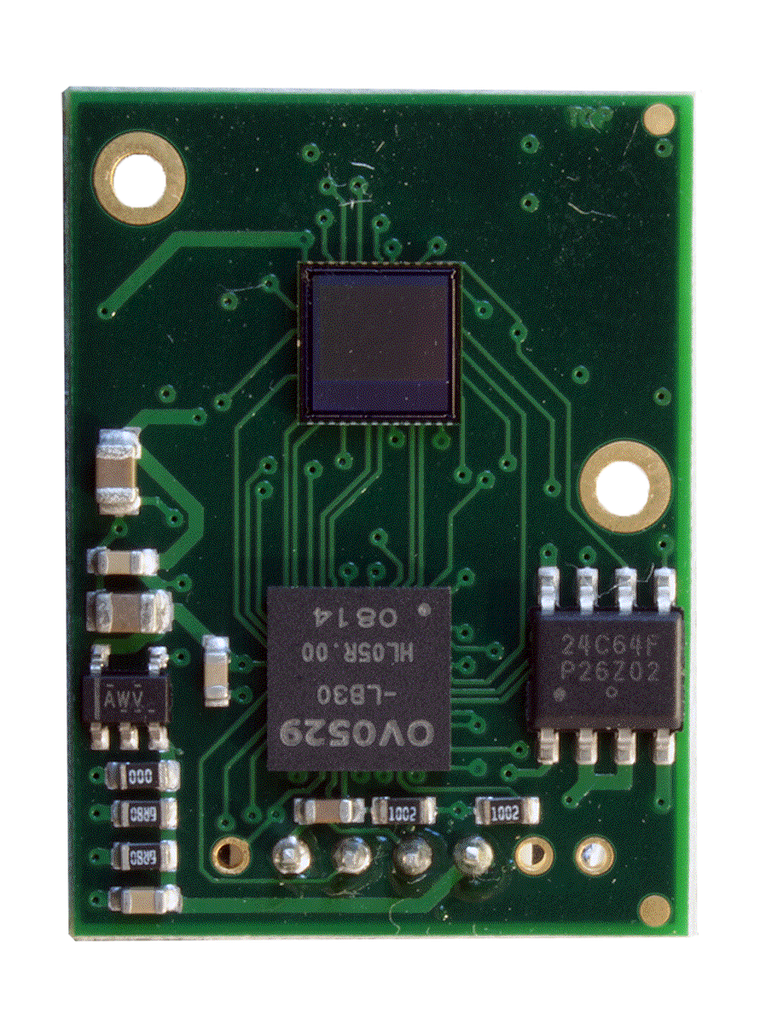

The C329 UART JPEG compression module performs as a video camera or a JPEG compressed still camera. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture (OV7725 sensor). The picture is then compressed by the JPEG engine (OV529) and transferred to the host.

Features:

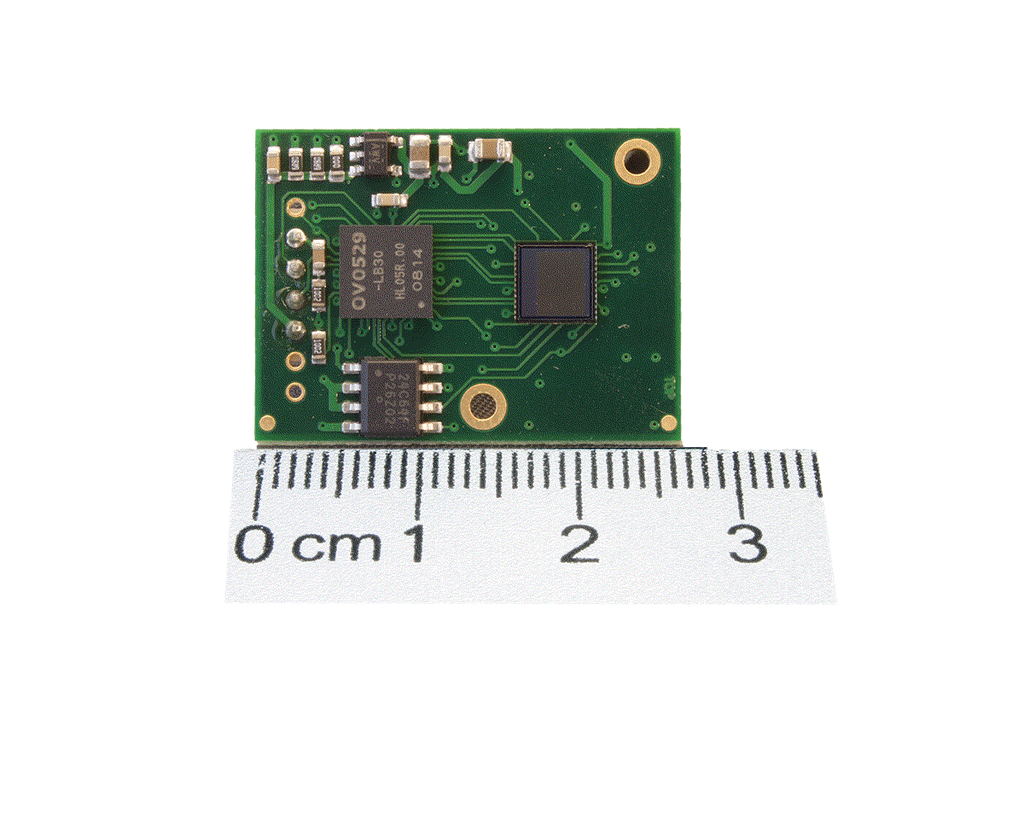

  • Small size 20 x 28mm
  • Adjustable resolution, Max VGA
  • 3.3V operation
  • Low Power consumption 20 mA passive
  • UART interface up to 921.6Kbs
  • Power Saving Mode
  • Multiple lens options
  • Multiple interface options

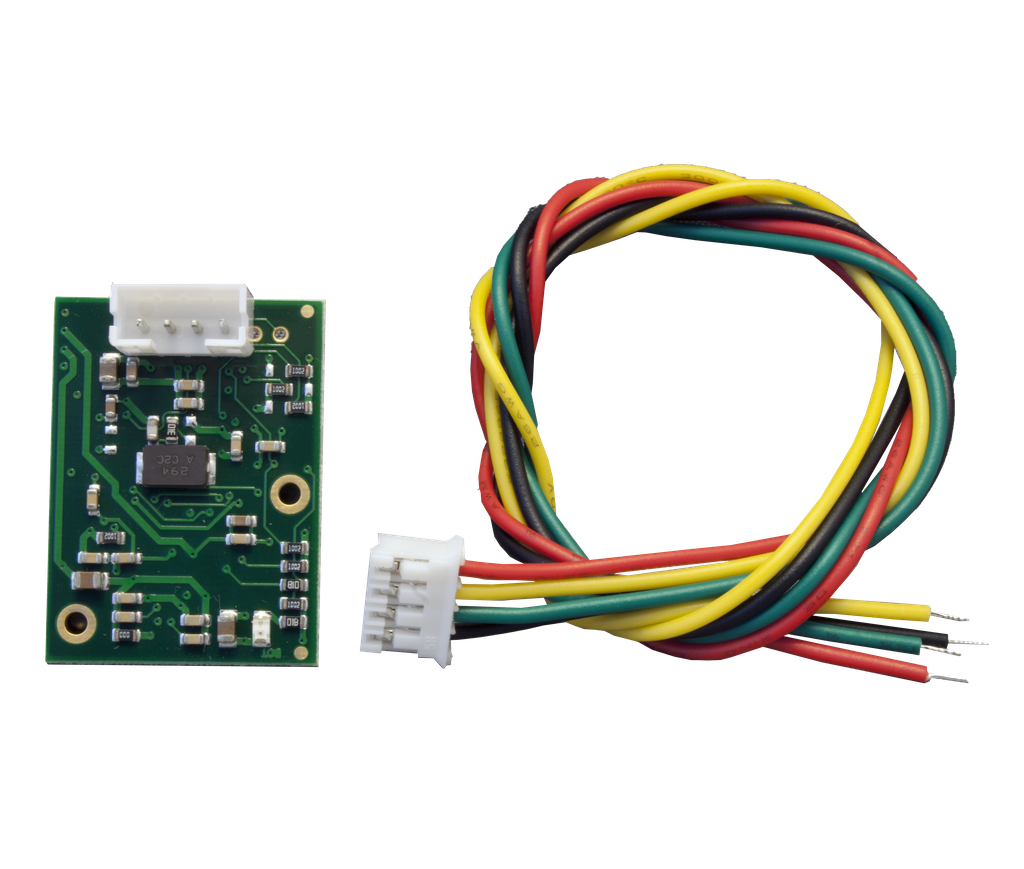

  • 4 pin connector cable 11 inch length (included)
Optional lenses available for this board

Sample pictures at 640 x 480 resolution with lens:

Note on frame rate: The frame rate is based on the baud rate. For the UART the max baudrate is 921,600 baud or 115200 Bytes/Sec base on an image size of 48K the best you can expect is 2FPS. If a faster frame rate is needed see the SPI version of this camera.

Documentation and Downloads
