Description: The C3282 JPEG Serial module performs as a video camera or a JPEG compressed still camera. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture. The picture is then compressed by the JPEG engine and transferred to the host.

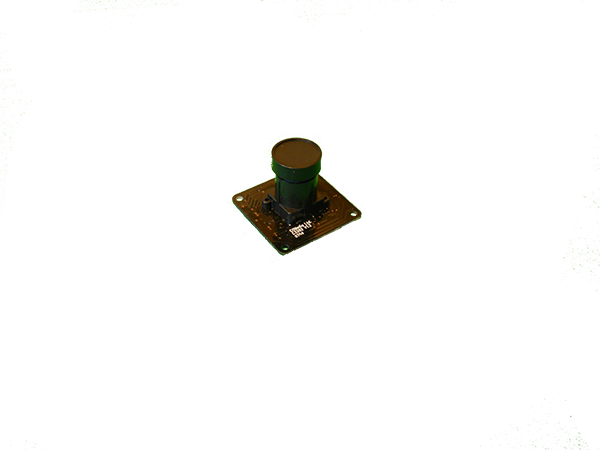

Camera comes with 6.0mm lens and NO IR filter.
5V operation and RS232 interface

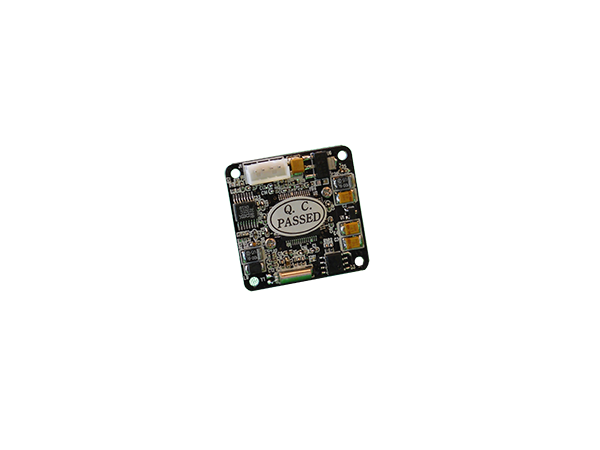

Standard PCB size (32x32mm) to fit several standard cabinet
Various lens can be selected
Low-cost, & low-powered solution for high resolution image capture
Built-in down-sampling, clamping and windowing circuits for VGA/CIF/SIF/QCIF/160x128/80x64 image resolutions
RS-232: 115.2K bps for transferring JPEG still pictures or 160x128 preview @8bpp with 0.75~6 fps
JPEG CODEC for different resolutions
Built-in color conversion circuits for 4 gray/16 gray/256 gray/12-bit RGB/16-bit RGB preview images
Auto detect baud rate and make connection to the host

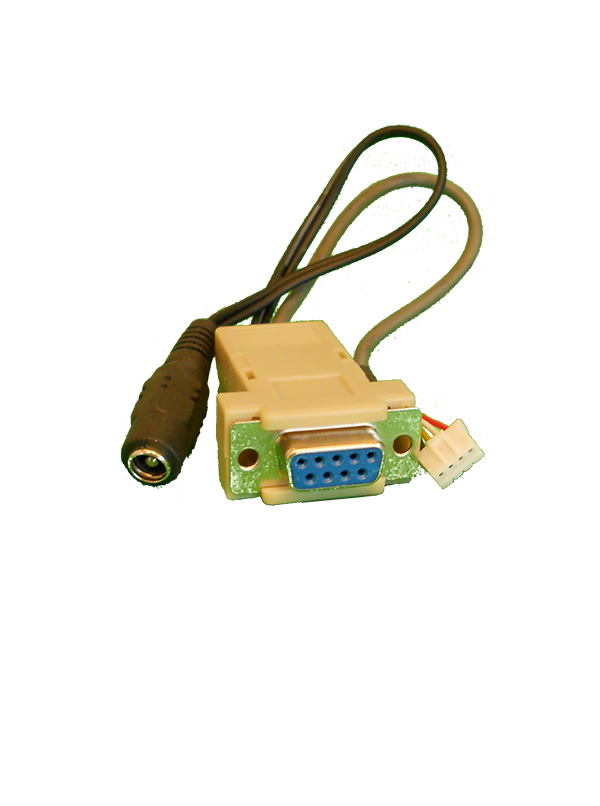

NOTE: Camera does come with RS232 communication cable.
