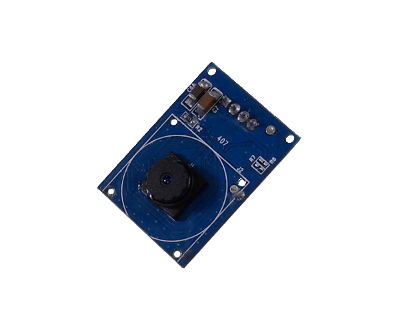

Description: The C306-36A is a camera module for various embedded image acquisition systems, such as: remote monitoring, vehicle monitoring, doorbell cams, camera phones, digital image recording, industry control, access control, etc. It is especially suited for low speed remote control image transmission system, such as phone lines, GPRS based on CDMA, & digital radio.
Small in size: 28 mm x 20 mm (L x W)
0.3M. CMOS sensor, VGA resolution, down sample to QVGA.
Video-out: VGA & 60 fps.
Low power consumption, 3.3V operation.
UART interface support up to 115.2 Kbps.
Built-in JPEG CODE.
Built-in lens, FOV 135°
Pixel Size PAL:628 x 582 / NTSC: 510 x 492
Image Sensor 1/5"
Baud Rate 9.6 Kbps ~ 115.2 Kbps
Video out VGA & 60 fps
Operating Voltage 3.3V±10%
Working Current 90 mA
Construction: 2G2P+IR filter
Effective Focal Length: 1.7mm
Relative illumination: 60% 3.44
Operating Temp. -20°C~+60°C
Dimension 28 mm x 20 mm (L x W)
