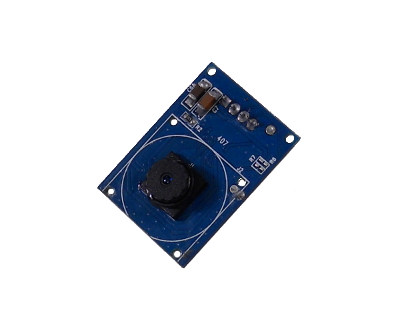

C306-36A Camera Module

https://electronics123.odoo.com/web/image/product.template/3129/image_1920?unique=d644ac2
(0 review)

SKU : C306-36A
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

C306-36A CQTWV409M

4.99 4.99 USD 4.99

4.99

Not Available For Sale

    This combination does not exist.

    ADD TO CART

    CLOSEOUT ITEM. NEW LOW PRICE! LIMITED QUANTITY AVAILABLE.


    Description: The C306-36A is a camera module for various embedded image acquisition systems, such as: remote monitoring, vehicle monitoring, doorbell cams, camera phones, digital image recording, industry control, access control, etc. It is especially suited for low speed remote control image transmission system, such as phone lines, GPRS based on CDMA, & digital radio.

    Features:

    • Small in size: 28 mm x 20 mm (L x W)

    • 0.3M. CMOS sensor, VGA resolution, down sample to QVGA.

    • Video-out: VGA & 60 fps.

    • Low power consumption, 3.3V operation.

    • UART interface support up to 115.2 Kbps.

    • Built-in JPEG CODE.

    • Built-in lens, FOV 135°

    Specifications:

    • Model C306-36A

    • Pixel Size PAL:628 x 582 / NTSC: 510 x 492

    • Image Sensor 1/5"

    • Baud Rate 9.6 Kbps ~ 115.2 Kbps

    • Output TTL

    • Video out VGA & 60 fps

    • Operating Voltage 3.3V±10%

    • Working Current 90 mA

    • Lens

      • Construction: 2G2P+IR filter

      • Effective Focal Length: 1.7mm

      • F#:2.0

      • FOV: 135°

      • Distortion

      • Relative illumination: 60% 3.44

    • Operating Temp. -20°C~+60°C

    • Dimension 28 mm x 20 mm (L x W)

    Documentation and Downloads
