C1098 JPEG Compression Camera Module

  • WeightMajor
  • WeightMinor

19.95 19.95 19.95 USD


This combination does not exist.

Add to Cart

SKU : C1098
Quantity on Hand : 11
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

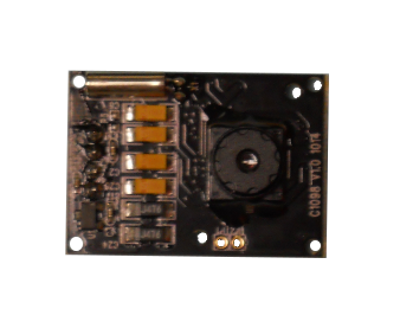

Description: The C1098 JPEG compression module performs as a video camera or a JPEG compressed still camera and can be attached to a wireless or PDA host. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture. The picture is then compressed by the JPEG engine and transferred to the host.

4-pin connector cable (11 inch female) included.


  • Small in size, 20 x 28 mm

  • VGA resolution, down sample to QVGA

  • Low power consumption, 3.3V operation

  • UART interface support up to 460.8 Kbps

  • Built-in JPEG CODEC

  • Built in lens, optional

  • User friendly command
