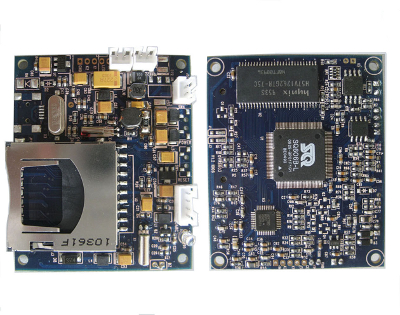

Description: This module has been designed for serial communication. It allows the user to control and retrieve the video data from the module remotely by using UART interface.
Features:
Support Video Input NTSC/PAL CVBS
TV Out Standard NTSC / PAL
Support external SD card
Motion Detection
Snapshot - VGA 640x480
Video Capture - VGA30fps
Playback View
Real Time Clock
NOTE: This is ONLY the module + cables. The Evaluation kit is no longer available
Documentation and Downloads
