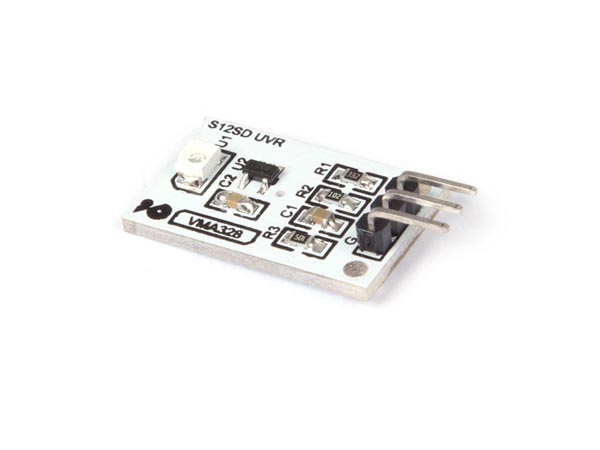

This analog UV sensor module extends your light sensing into the ultraviolet. Its GUVA-S12SD UV photodiode detects light from 240 to 370 nm, which covers UV-B and most of the UV-A spectrum. Because the photodiode signal is very small (nanoamp level), the module includes an op-amp to amplify it.
- Sensor: GUVA-S12SD UV photodiode
- Wavelength range: 240-370 nm
- Operating voltage: 3.3 V to 5 V
- Output voltage: 0 V to 1 V (0-10 UV index)
- Response time: 0.5 second
- Accuracy: +/- 1 UV index
- Operating temperature: -20°C to +85°C
- Current consumption: 5 mA
- Dimensions: 24 x 15 mm
