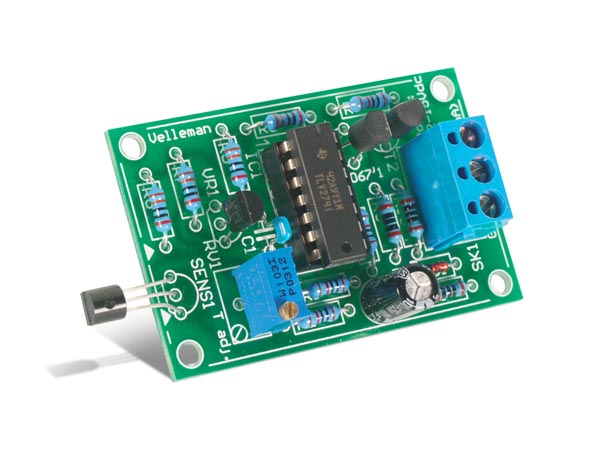

A universal temperature sensor kit for measuring indoor and outdoor temperatures, controlling heating or cooling of rooms and equipment, monitoring process temperatures, putting a temperature readout on your website or checking your pool's temperature.
The sensor uses a 3-wire current loop (GND, +V and OUT) with a 0 ~ 20mA output, which gives excellent noise immunity. For a voltage input, place a resistor between OUT and GND: 250 Ω with a 12VDC supply gives 0 ~ 5V, and 500 Ω with a 15VDC supply gives 0 ~ 10V. The LM335 sensor can be mounted on the board or up to 1 m away on shielded cable, and only one adjustment is needed.
- Range: -20°C to +70°C
- Accuracy: 2° over the full range
- Output: 0 ~ 20mA current loop (output voltage compliance 10V)
- 0 ~ 5V output: 250 Ω load, 12VDC supply
- 0 ~ 10V output: 500 Ω load, 15VDC supply
- 3-wire system: GND, +V and OUT
- Current consumption: 30mA max.
- Dimensions: 55 x 35 x 15mm (2.2" x 1.4" x 0.6")
