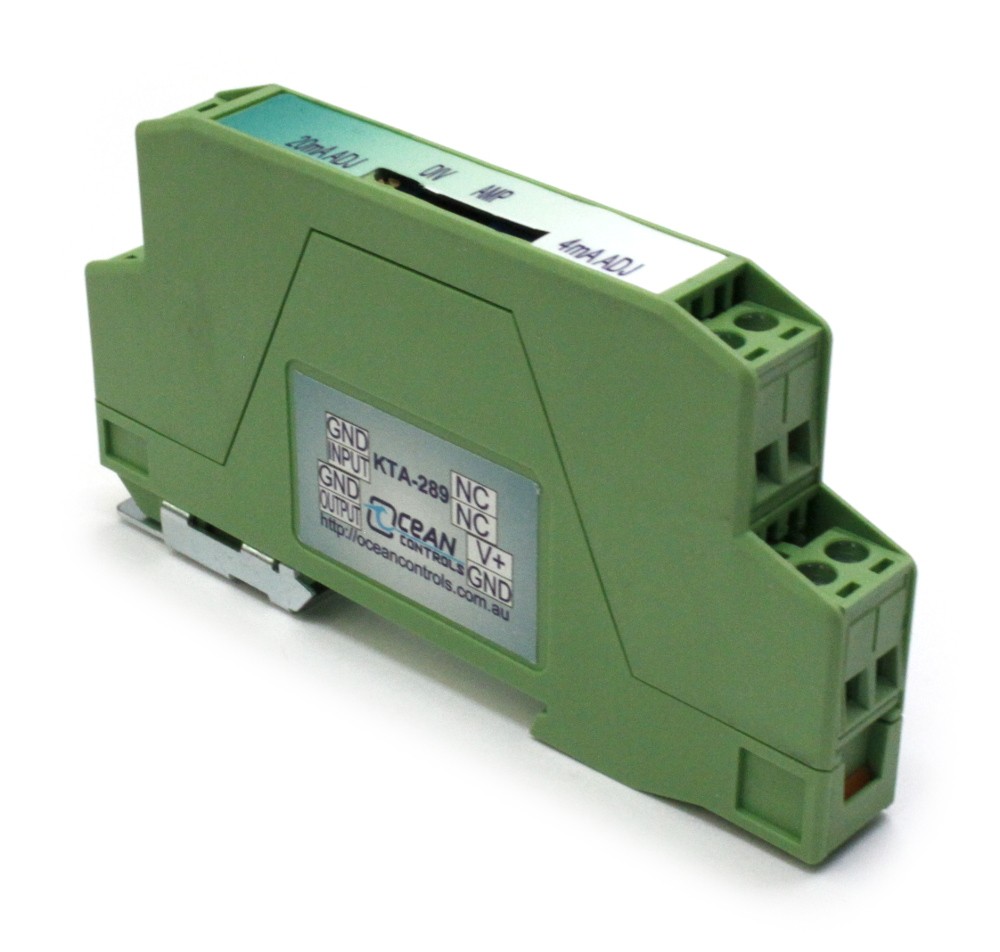

The KTA-289 is an easily configured non-isolated voltage signal to 4-20mA signal converter.
Configuration is carried out using the switch and two trimpots at the top. If the voltage signal is below 2.3V the switch is set to amplify. If the Voltage signal range is above 0-4.9V the switch is set to divide. The two trimpots are then adjusted for the 4mA and 20mA output as per the instructions in the manual.
Features:
- Power Supply: 8-30VDC
- Power Consumption: 20mA
- Output: 4 to 20mA Output Signal
- Input: Amplify Mode Input Range: from 0-0.1V up to 0-2.3V.
- Divide Mode Input Range: from 0-4.9V up to 0-30V
- Input Range is Adjustable to Divide or Amplify the Voltage Input Signal
- Voltage Drop: 7.5V
- Maximum Load: 200Ω @12VDC , 800Ω @24VDC
- Operating Temperature: -40 to 85°C
- Dimensions: 100L x 13W x 54H (mm)
