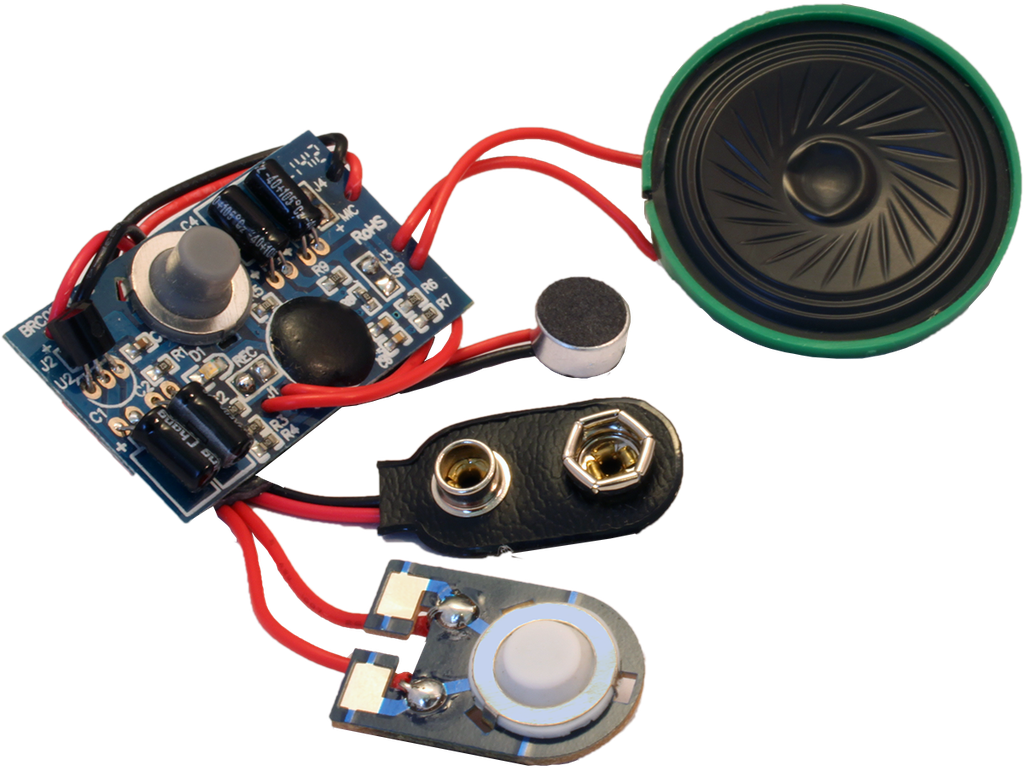

Fully Assembled and tested. All you need to do is add a 9V Battery.
Record: Press and hold the “Record” switch. LED indicator turns on and starts recording. Release switch to finish recording, and LED turns off.
Play: Press “Play” switch to play complete message once.
Specifications:
20 second non-volatile recordable IC. (Message will be retained if battery removed. You can also re-record a new message when desired)
Includes Electret microphone for recording.
40mm Mylar speaker included.
Operating Voltage: 9V (battery not included)
Operating Current: <= 40mA (average)
Standby Current <= 0.2mA
PCB size: 1.8" x 1" (45mm x 25mm)
