SparkFun USB-C Breakout

https://electronics123.odoo.com/web/image/product.template/10123/image_1920?unique=fb1592c
(0 review)

SKU : BOB-15100
Quantity on Hand : 22
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

BOB-15100

5.95 5.95 USD 5.95

5.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

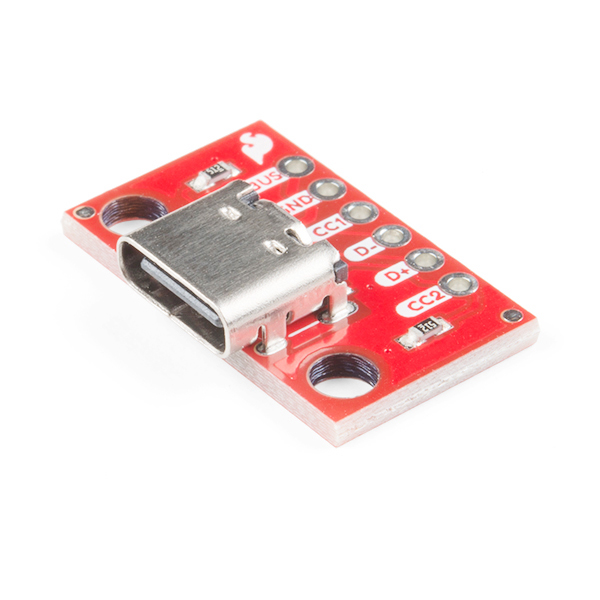

Description: With this USB breakout you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it’s reversible!

This board breaks out the USB-C connector’s VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.

Features:

  • Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)

  • Weight: 1.35g

Documentation and Downloads
