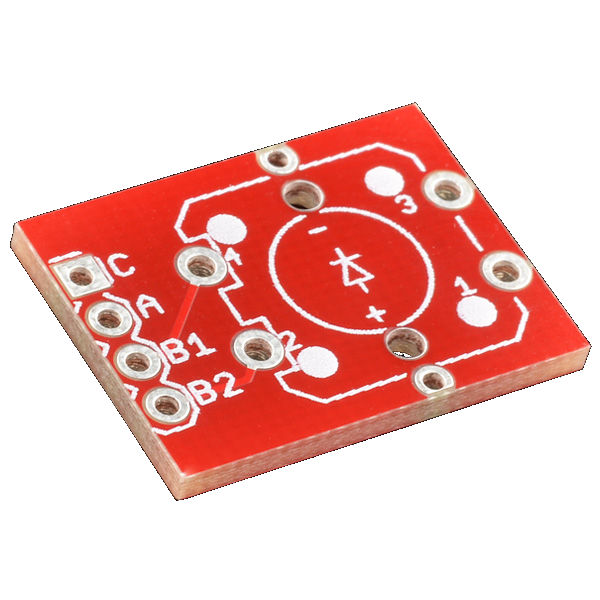

LED Tactile Button Breakout
SKU : BOB-10467
Quantity on Hand :
5
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This simple breakout board makes it easy to use our LED tactile switches in a breadboard, or your next project.
Note: Populate the board according to the polarity of the LED on the switch. The markings for the switch are irrelevant and can be reversed.
