SparkFun Photo Interrupter Breakout Board - GP1A57HRJ00F

https://electronics123.odoo.com/web/image/product.template/11232/image_1920?unique=a0daa4d
(0 review)

SKU : BOB-09322
Quantity on Hand : 8
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

BOB-09322

1.95 1.95 USD 1.95

1.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

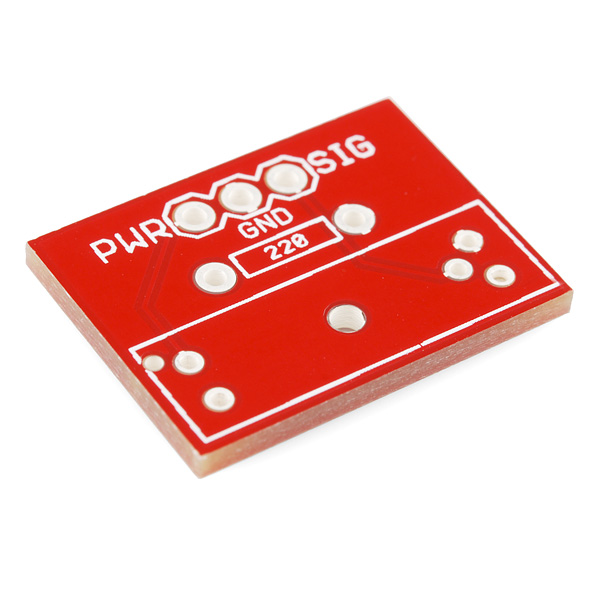

Description: A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate, photodiode, or phototransistor). This PCB has three connections for PWR, GND, and Signal.

When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V).

Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω, works as well) current limiting resistor are listed below.
