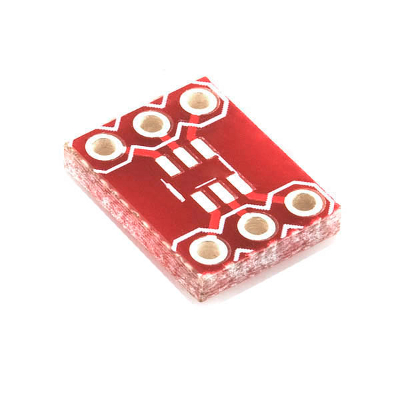

SOT23 to DIP Adapter
SKU : BOB-00717
Quantity on Hand :
37
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: 6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.
DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket.
Dimensions: 0.34x0.46"
40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Supported Devices: Pad layout fits all standard SOT23 packages including:
DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket.
Dimensions: 0.34x0.46"
40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Supported Devices: Pad layout fits all standard SOT23 packages including:
- SOT-23
- SOT-23-3
- SOT-23-6
- Micro3
- 5-MicroSMD
- All other similar SOT23 packages
Documentation and Downloads
