f1.68mm F2.9 Lens and Lens Holder - BB345 Lens and BB288 Lens Holder

(0 review)

SKU : BB345-HL
Skill Level : Partially Assembled

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

16.14 16.14 USD 16.14

16.14

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

This is a kit which includes the following items:

1 x BB345 1.6 mm Lens

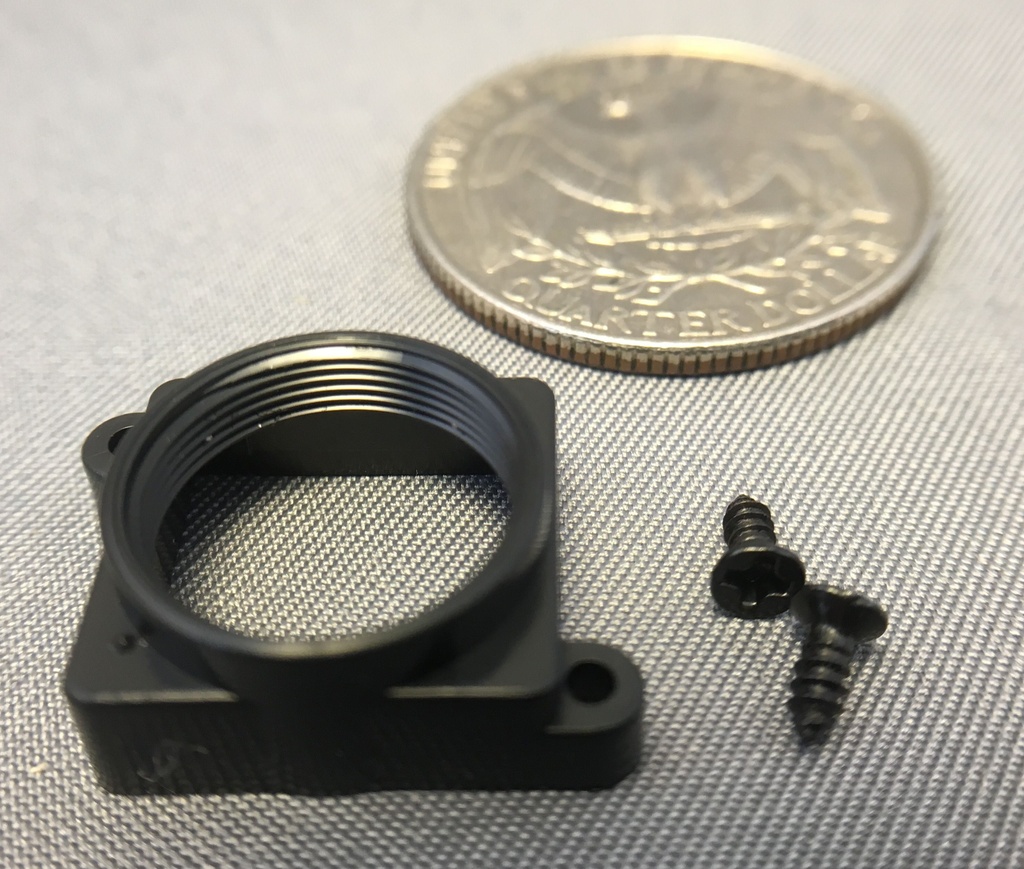

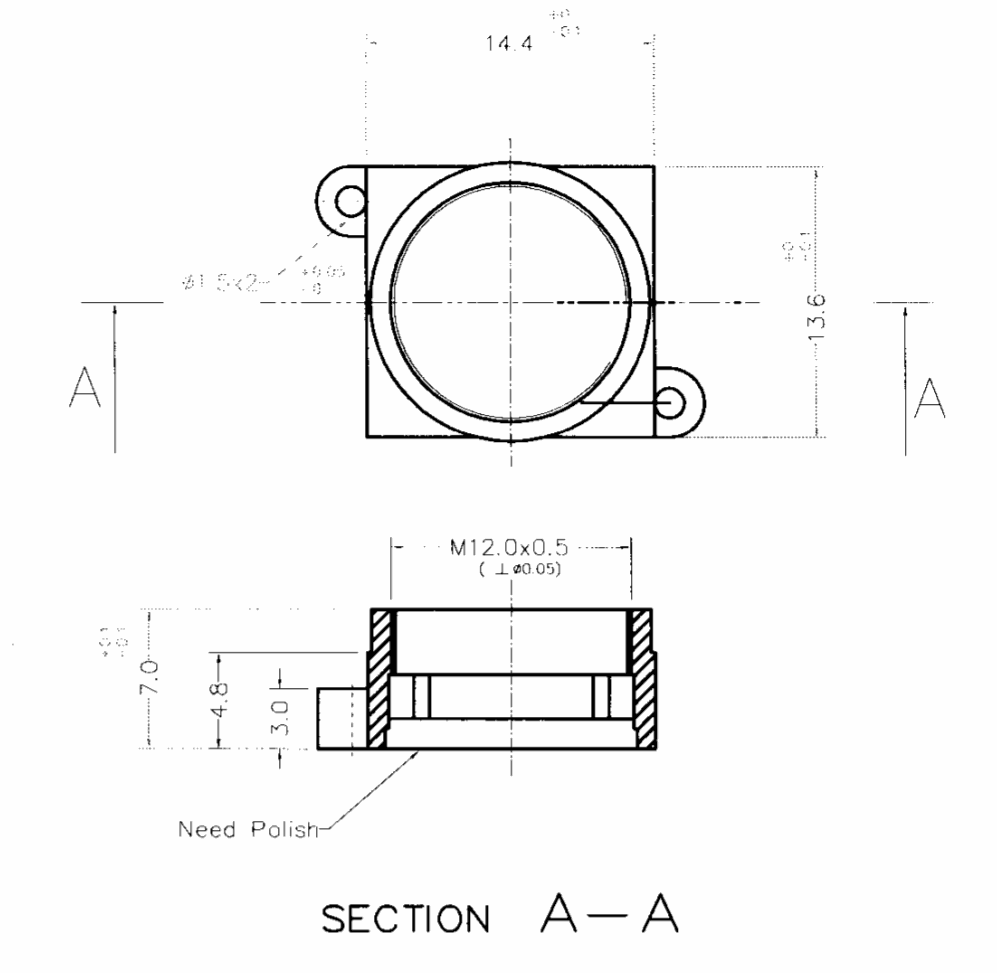

1 x BB288 Lens Holder

Features:

  • For Sensor Size: 1/4" (max image circle 4.80 mm dia)

  • Focal Length (EFL) : f=1.68 mm

  • F/NO (infinite) : F/NO 2.9

  • Back Focal Length: BFL=4.3 mm

  • Flange Back Length: FB=3.36 mm

  • Field of View (FOV) :

    • Diagonal = 170 deg @ 4.5 mm

    • Horizontal = 128 deg @ 3.6 mm

    • Vertical = 94 deg @2.7 mm

  • IR cut filter : None

  • Total height (mm): 15 mm

  • Diameter 14 mm

  • TV Distortion: <30%

  • Thread size: M12 x P0.5
