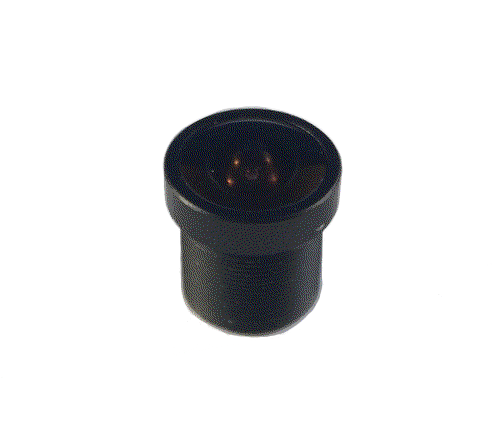

f1.68mm F2.9 Lens ONLY (No IR Cut Filter) As found on C329 Camera
SKU : BB345
Quantity on Hand :
297
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
PLEASE NOTE: This is only the lens. (Suitable lens holder is SKU# BB288 see below)
Features:
- For Sensor Size: 1/4" (max image circle 4.80 mm dia)
- Focal Length (EFL): f=1.68 mm
- F/NO (infinite): F/NO 2.9
- Back Focal Length: BFL=4.3 mm
- Flange Back Length: FB=3.36 mm
- Field of View (FOV):
- Diagonal = 170 deg @ 4.5 mm
- Horizontal = 128 deg @ 3.6 mm
- Vertical = 94 deg @2.7 mm
- IR cut filter: None
- Total height (mm): 15 mm
- Diameter 14 mm
- TV Distortion: <30%
Thread size: M12 x P0.5
