1. All Products
  2. Power Supply Wall Adapter Transformer 6 Watt 12VDC 500mA F2 2.5mm X 5.5mm
Public Pricelist

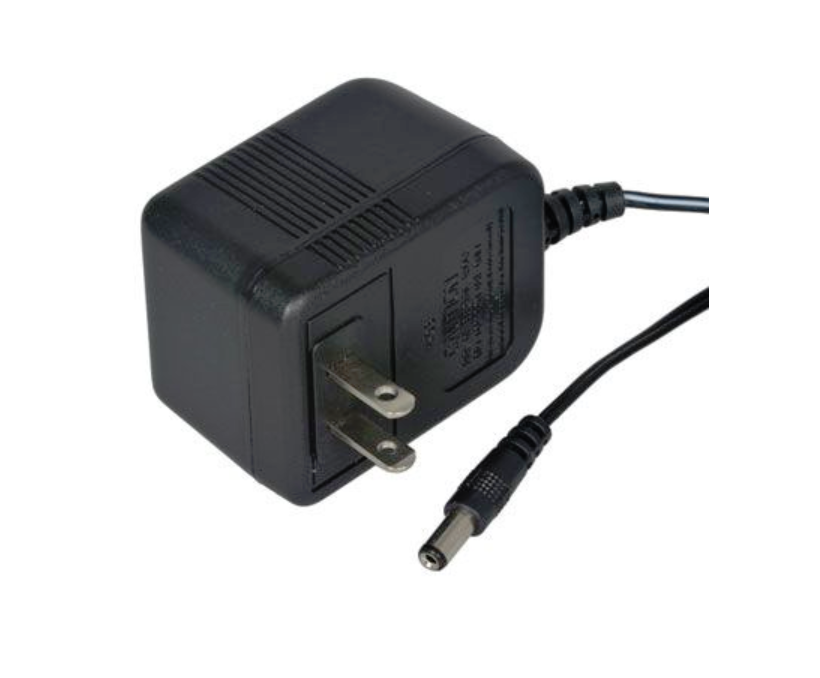

Power Supply Wall Adapter Transformer 6 Watt 12VDC 500mA F2 2.5mm X 5.5mm

(0 review)

SKU : BB204
Quantity on Hand : 77
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

BB204

$ 13.85 13.85 USD $ 13.85

$ 13.85

  • WeightMinor
  • 0

This combination does not exist.

Terms and Conditions

Share

Features:

  • 6 Watt AC/DC Unregulated Linear Wall Adapter

  • 12 Volts at .5 Amps

Specifications:

  • Connector Type: Cylindrical Female
  • Connector Size: 2.5 mm x 5.5 mm
  • Input 120 VAC 60Hz 9.5W
  • Output 12 VDC 500 mA
  • Polarity: Center Positive
  • Dimensions: 2.5" x 2.1" x 1.7"
  • Cord length: 6'
  • Weight: .6 lbs
  • Certifications: UL/CSA

Documentation and Downloads
