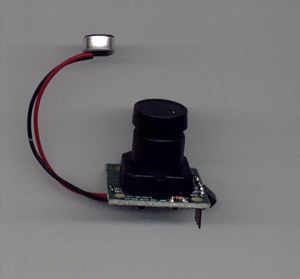

B/W Camera Mod w/ Audio M3186M-3720 EIA

https://electronics123.odoo.com/web/image/product.template/2922/image_1920?unique=b304e59
(0 review)

SKU : BB080
Quantity on Hand : 6
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

BB080 CM31863G

4.99 4.99 USD 4.99

4.99

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

Features:

  • Size: 29 x 29 mm
  • Full Resolution: 365k pixels
  • Lens: f3.7 mm F2.0
  • Built in microphone
  • High sensitivity microphone circuit
  • Low power consumption (<200mW)
  • Direct connect to standard video monitor
  • On-chip auto exposure control
  • Gamma correction-0.45/1.0
  • Auto gain control-18db and automatic black level calibration.
  • Lens: (included): f3.7mm, F2.0 FOV 65deg x 50deg (wide FOV)

(M3186M-3720)
