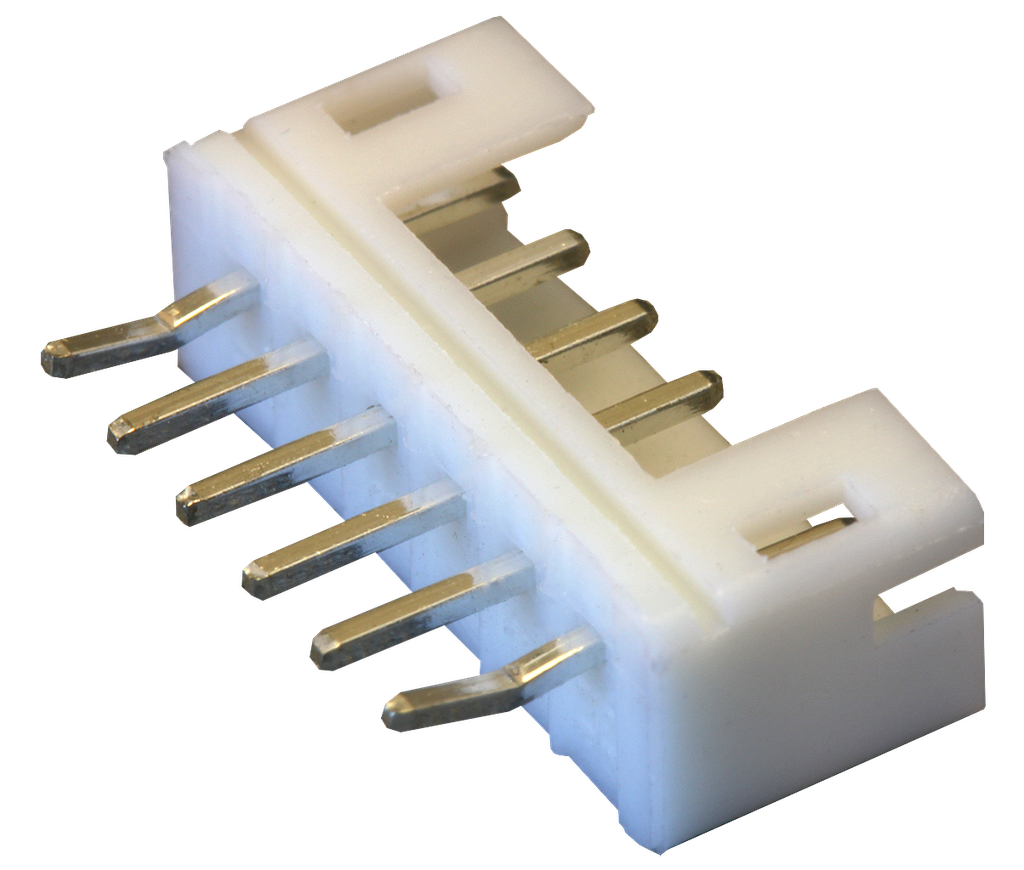

Description: This is a 6-pin male connector header as found on our C429-series cameras. It matches with our BB019.
The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
Features:
The contact has a long wire strip holding length of 2.6 +/-0.4mm.
Fully shrouded header
The same shrouded header can be used for the KR/KRD/CR insulation displacement connectors.
Series PH connector
Category Wire to Board Crimp style Connectors
Type Disconnectable type Crimp style, Thin type
Specifications:
Pitch 2.0 mm
Current rating 2A (AWG#24)
Voltage rating 100V
PC board mounting direction Top entry
