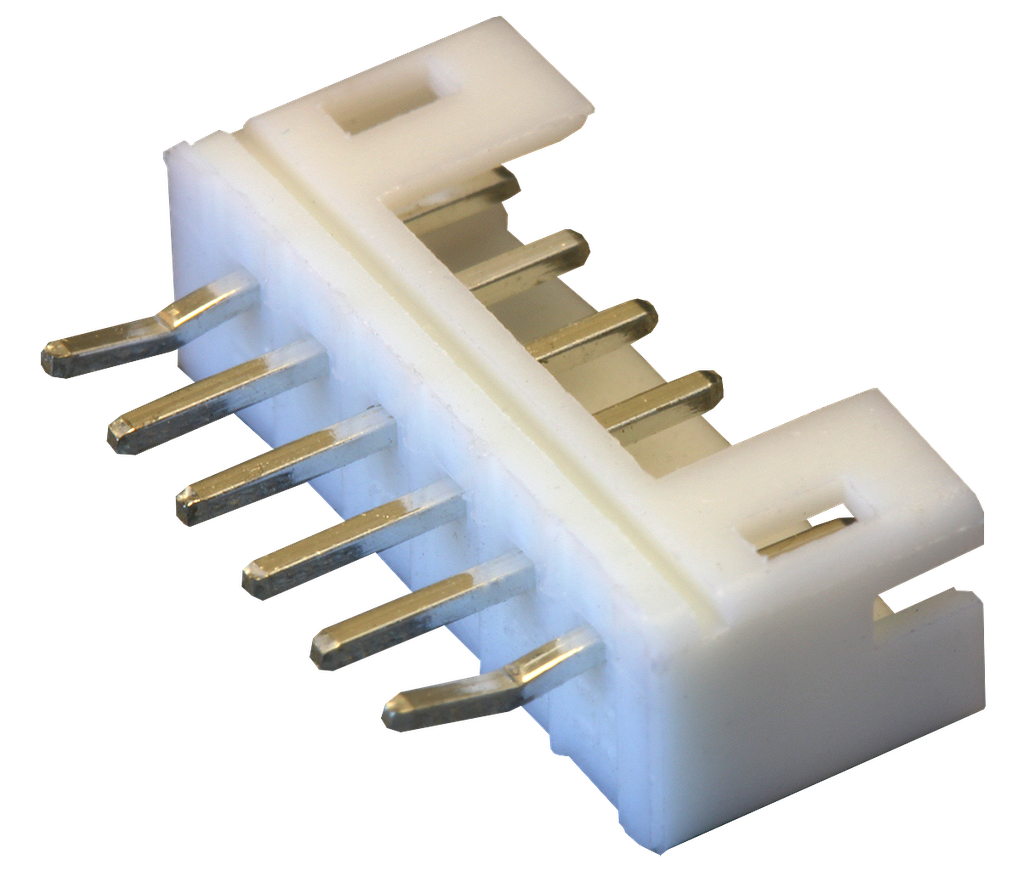

JST-PH 6-pin male connector header

https://electronics123.odoo.com/web/image/product.template/2901/image_1920?unique=0458c59
(0 review)

SKU : BB030
Quantity on Hand : 1886
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

BB030

0.36 0.36 USD 0.36

0.36

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This is a 6-pin male connector header as found on our C429-series cameras. It matches with our BB019.

The dimple at the center of the contact ensures positive contact and low contact resistance at all times.

Features:

  • The contact has a long wire strip holding length of 2.6 +/-0.4mm.
  • Fully shrouded header
  • The same shrouded header can be used for the KR/KRD/CR insulation displacement connectors.
  • Series PH connector
  • Category Wire to Board Crimp style Connectors
  • Type Disconnectable type Crimp style, Thin type

Specifications:

  • Pitch 2.0 mm
  • Current rating 2A (AWG#24)
  • Voltage rating 100V
  • PC board mounting direction Top entry
