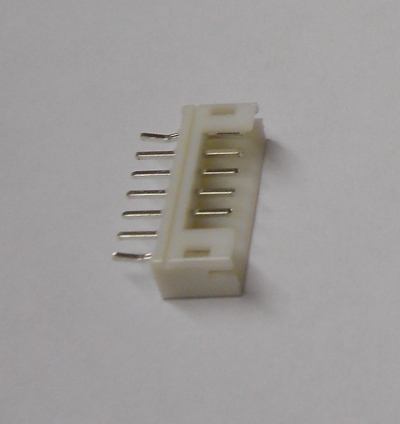

Description: This is a 7-pin male connector header as found on our C329-SPI camera. It matches with our BB002.
Features:
Series PH connector
Category Wire to Board Crimp style Connectors
Type Disconnectable type Crimp style, Thin type
Specifications:
Pitch 2.0 mm
Current rating 2A (AWG#24)
Voltage rating 100V
PC board mounting direction Top entry
