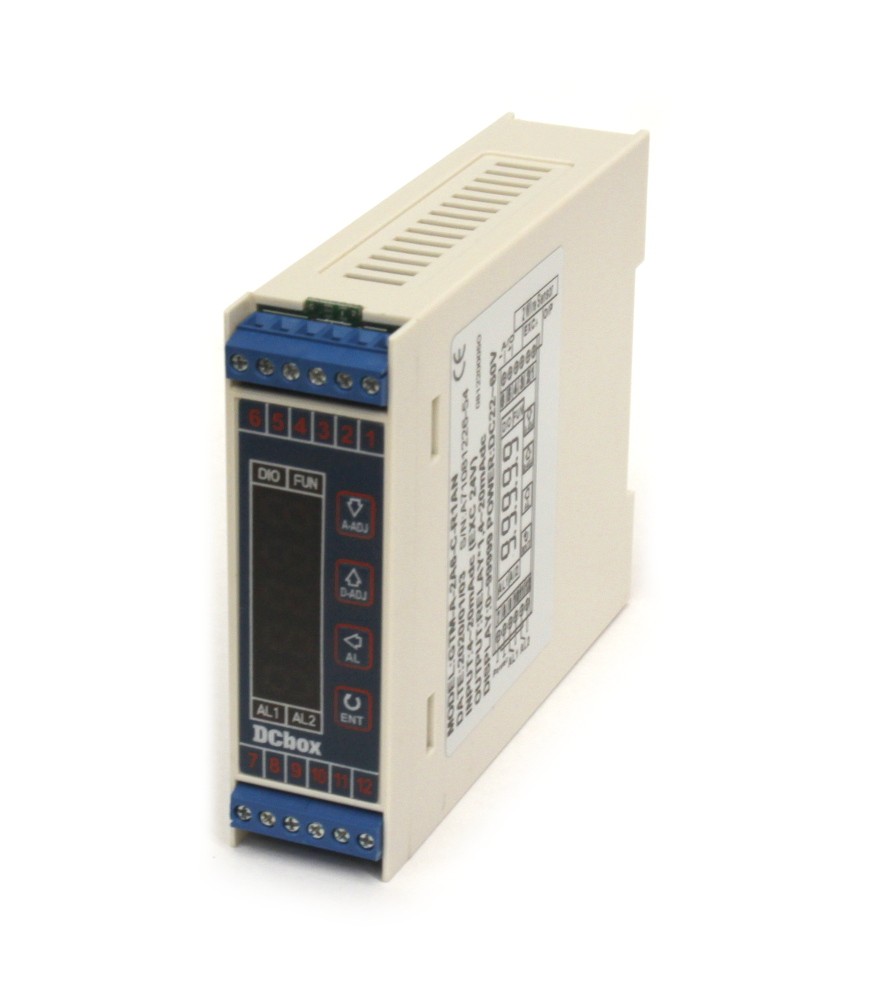

Analog Isolated Transmitter 0 to 10VDC In, 4 to 20 mA Out

(0 review)

SKU : AXB-052
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

289.00 289.0 USD 289.00

289.00

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: The AXB-052 is a 0 to 10 VDC input, 4 to 20 mA output isolated transmitter. It features 3 way 2 kV isolation (input / output 1 / supply), a 24 VDC Excitation Voltage to power sensors and a 5 digit programmable display. The display can be programmed to show the 4 to 20 mA signal in engineering units. The display allows technicians to easily view the input signal and determine if a fault has occurred.

Features:

  • Mounts onto DIN rail
  • High stability

Specifications:

Power supply
18 to 60 VAC/DC
Output
4 to 20 mA
Measuring Accuracy
0.1% Full scale
Display
5 digit, 6.8 mm tall red LED
Display range
 -19999 to 99999 with adjustable decimal point
Sampling time
16 cycles/sec
Analog output resolution
16 bit
IsolationInput / Output 1 / supply
Memory modeNon-volatile E­­²PROM memory
Parameter settingTouch switches
Output drive capability (maximum)10 V or 500 Ω
Output ripple<0.1 F.S.
Alarm output relay1
RS-485 address"01" to "FF" (0 to 255)
RS-485 baud rate19200 / 9600 / 4800 / 2400 selective
RS-485 protocolModbus RTU mode
Temperature coefficientModbus RTU mode
Temperature coefficient50ppm/°C (0 to 50°C)
Operating conditionStorage condition0 to 60°C (20 to 90% RH non-condensed)
Storage condition0 to 70°C (20 to 90% RH non-condensed)
CE EMC Certification: EN 55022:1998/A1:2000 Class A
EN 61000-3-2:2000
EN 61000-3-3:1995/A1:2001
EN 55024:1998/A1:2001
Dimension23 (W) × 76 (H) × 96 (D) mm
Manufacturer Part:SMATR-E49-11NA
