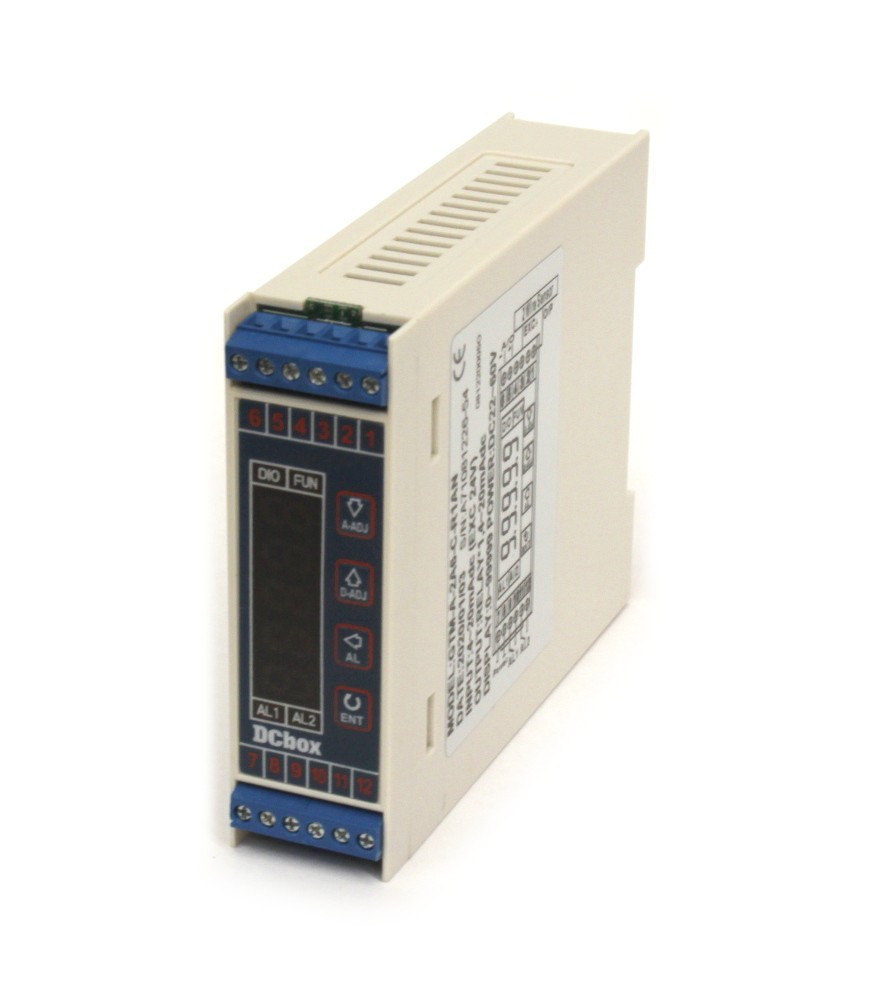

Description: The AXB-052 is a 0 to 10 VDC input, 4 to 20 mA output isolated transmitter. It features 3 way 2 kV isolation (input / output 1 / supply), a 24 VDC Excitation Voltage to power sensors and a 5 digit programmable display. The display can be programmed to show the 4 to 20 mA signal in engineering units. The display allows technicians to easily view the input signal and determine if a fault has occurred.
Features:
- Mounts onto DIN rail
- High stability
Specifications:
| Power supply | 18 to 60 VAC/DC |
| Output | 4 to 20 mA |
| Measuring Accuracy | 0.1% Full scale |
| Display | 5 digit, 6.8 mm tall red LED |
| Display range | -19999 to 99999 with adjustable decimal point |
| Sampling time | 16 cycles/sec |
| Analog output resolution | 16 bit |
| Isolation | Input / Output 1 / supply |
| Memory mode | Non-volatile E²PROM memory |
| Parameter setting | Touch switches |
| Output drive capability (maximum) | 10 V or 500 Ω |
| Output ripple | <0.1 F.S. |
| Alarm output relay | 1 |
| RS-485 address | "01" to "FF" (0 to 255) |
| RS-485 baud rate | 19200 / 9600 / 4800 / 2400 selective |
| RS-485 protocol | Modbus RTU mode |
| Temperature coefficient | Modbus RTU mode |
| Temperature coefficient | 50ppm/°C (0 to 50°C) |
| Operating conditionStorage condition | 0 to 60°C (20 to 90% RH non-condensed) |
| Storage condition | 0 to 70°C (20 to 90% RH non-condensed) |
| CE EMC Certification: | EN 55022:1998/A1:2000 Class A EN 61000-3-2:2000 EN 61000-3-3:1995/A1:2001 EN 55024:1998/A1:2001 |
| Dimension | 23 (W) × 76 (H) × 96 (D) mm |
| Manufacturer Part: | SMATR-E49-11NA |
