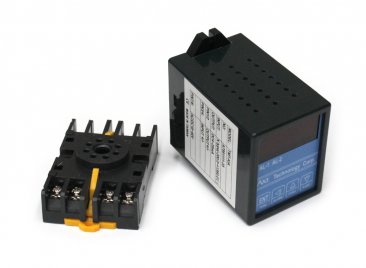

Microprocessor K Thermocouple Isolated Transmitter 4 to 20 mA

(0 review)

SKU : AXB-005
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

AXB-005

138.95 138.95000000000002 USD 138.95

138.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: The AXI-005 is a K-type thermocouple isolated transmitter. It features 3 way 2 kV isolation and a 4.5 digit programmable display. The display is programmed to show the temperature.

Features:

  • K-type thermocouple input
  • Cold junction compensation
  • Sensor error compensation (offset) and burnout protection function
  • Plugs into a socketed DIN rail Base
  • High stability
  • CE EMC certification

Specification:

  • Power supply: 18 to 60 VAC/DC
  • Output drive capability (Maximum): 10 V or 500 Ω
  • Output ripple: <0.1% Full scale
  • Sampling rate: 10 Hz
  • Accuracy: 0.1% Full scale + CJC error
  • Isolation: Three-way, 2 kV isolation
  • Input offset range: ±99.9 °C
  • Display: 4.5 digit, 10.16 mm tall red LED
  • Display range: ±19999 with adjustable decimal point
  • Insulation resistance ( at 500 VDC): >100 MΩ
  • Temperature coefficient (0 to 50°C): 50 ppm/°C
  • Environmental operating range: 0 to 60 °C, 20 to 90% RHT non condensing
  • Environmental storage range: 0 to 70 °C, 20 to 90% RHT non condensing
  • Dimension: 50(W) × 100(H) × 85(D) mm
