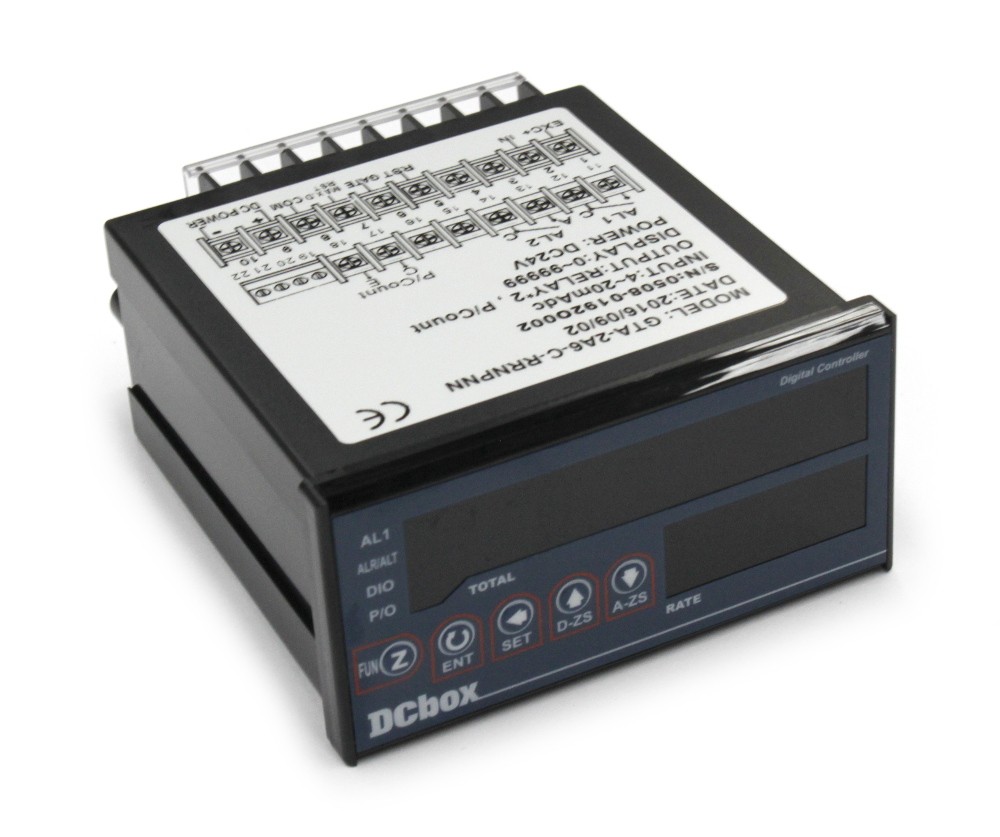

Analog 4-20mA Rate Totaliser Meter

  • WeightMajor
  • WeightMinor

450.00 450.00 450.0 USD


This combination does not exist.

Add to Cart

SKU : ALT-090
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions


DescriptionThe GTA- is a budget priced programmable totaliser indicator. It accepts a 4-20mA signal as a rate or flow

The manual talks of many options. We currently only stock the GTA-2A6-C-RRNPNN. If you require other options we can quote you and there will be a 3 to 4 weeks delivery time. Contact [email protected] for inquiries.


  • 10 Digit Microprocessor Totalizer Meter
  • 5 Digit Microprocessor Rate Meter
  • Rate of display range: 0~99999
  • Rate/Total decimal point selectable
  • Time unit selectable: sec / min/hour
  • Total scale programmable(0.0001~9.9999)
  • 2 Alarm Relays
  • (15bit resolution) optional
  • Roof square function available for analog input
  • Reset for Total by external control input
  • CEapproval
  • High stability, non-flammablecase(PC), highsafety
  • Pulse Output


  • Accuracy: Analog input: +/-0.1% F.S. +/-1digit Pulse Input +/-0.03%FS
  • Display Screen: High brightness red LED; 10.2mm(0.4")
  • Analog Sampling Time: 16 cycles/sec
  • Pulse Sampling Time: 10 cycles/sec (>10Hz); f cycles/sec (<10Hz)
  • Max. Input Frequency: 100KHz (50% duty cycle)
  • Display Range: Rate: 0~99999; Total: 0~9999999999
  • Parameters Setting: Push buttons
  • Back Up Memory: EEPROM
  • Over Range Indication: doFL/ioFL
  • Temperature Coefficient: 100ppm/degC(0~60degC)
  • Operating Temperature: 0 to 60degC
  • Operating Humidity: 20 to 90% RH(non condensing
  • Storage Temperature -10-70degC
  • Operating Humidity: 20 to 90% RH(non condensing
  • Power Supply 24VDC
  • Power Consumption: 8.5VA (all functions output)
  • Dimensions: 96x48x112mm.

Documentation and Downloads
