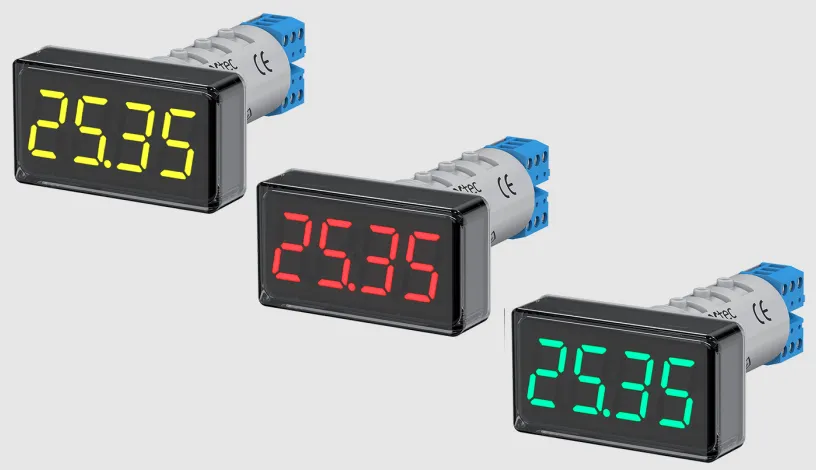

The ITP17 is a universal indicator for monitoring industrial processes. It features a three-color display that shows parameters in green, yellow, and red. You can customize the thresholds for color changes to suit their specific needs. The ITP17 simplifies the selection process by directly interfacing with a variety of sensors, including those for temperature, level, pressure, humidity, etc.
Main features of ITP17
- Three-color seven-segment indicator (green\red\yellow)
- Configurable analog input (0-5 mA, 0(4)-20 mA, 0(2)-10 V), RTDs and thermocouples signals.
- Programming via MicroUSB.
- ON/OFF Control: Includes an NPN output for ON/OFF control functionality.
- Operating modes: continuous indication of the measured parameter\three-color indication by thresholds.
- Standardised design and fits into a standard 22.5 mm borehole for signal lamps.
Features:
- Power supply: 10 - 30 V DC (nominal voltage 24 V)
- Power consumption, max.: 1W
- Input: One Input
- Input signal:
- Current 0...5 mA, 0(4)...20 mA
- Voltage 0(2)...10 V
- RTD: 50/100/1000 Ω Cu, Pt, Ni, M, P
- Thermocouples: THK, THN, THA, TJK, TVR, TPP
- Input resistance when measuring voltage: <250 kОm
- Input polling time: < 0,3 s
- Configuration Interface: MicroUSB
- Output: NPN output for ON/OFF control functionality.
- Display Type: Four-digit seven-segment display
- Character height: 14 mm
- Display color: Red\Green\Yellow
- Ambient temperature: -40…60 °C
- Relative humidity:
- IP Code:
- Front: IP65 -
- Rear: IP20
- UV-protected so that they can be used under direct sun exposure.
- Protection class: III
- Weight approx.:
- Dimensions: 26×48×65 mm
