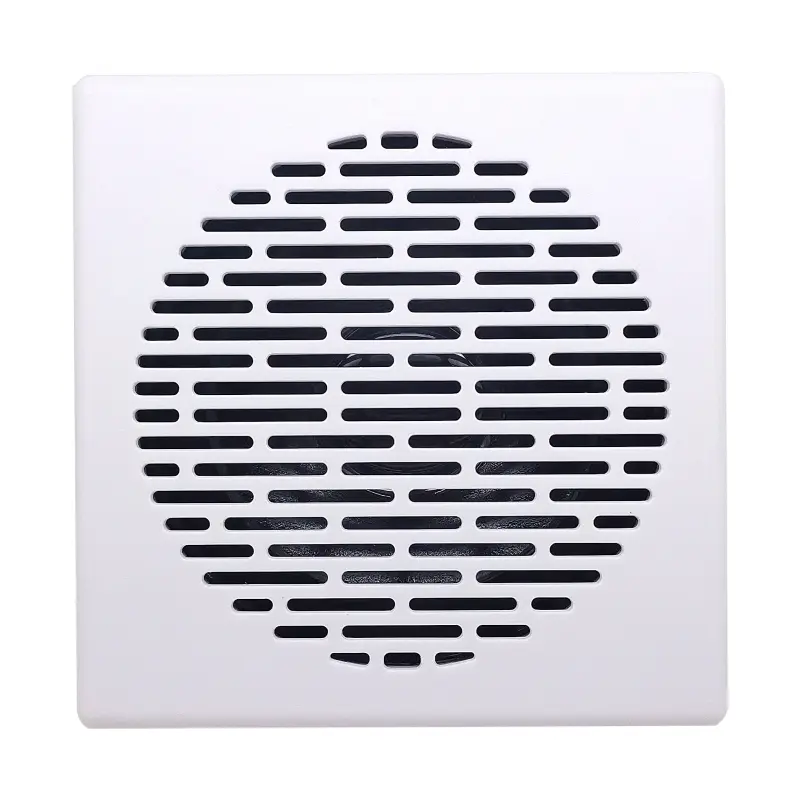

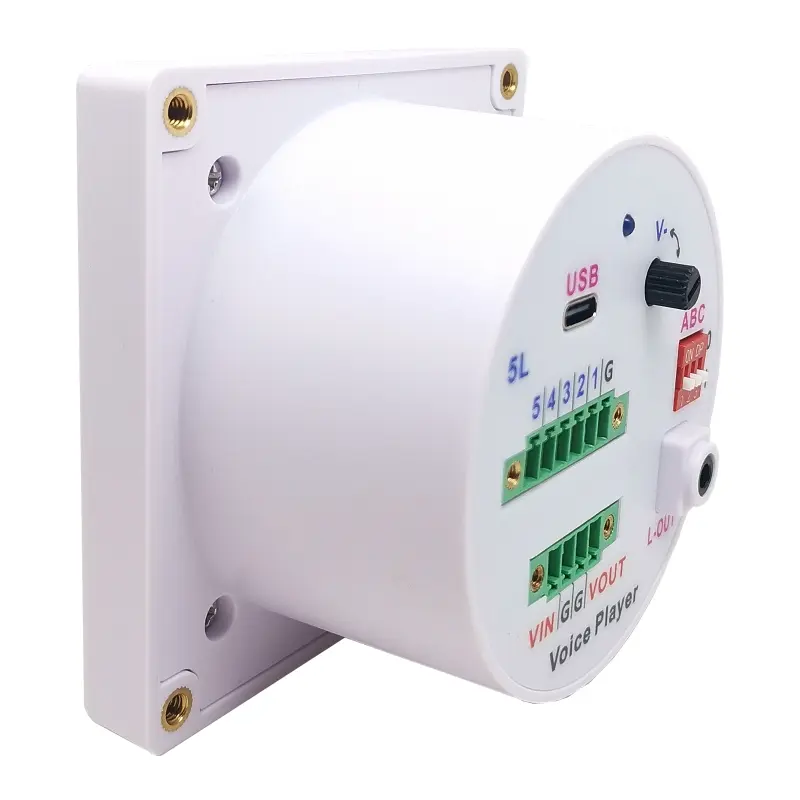

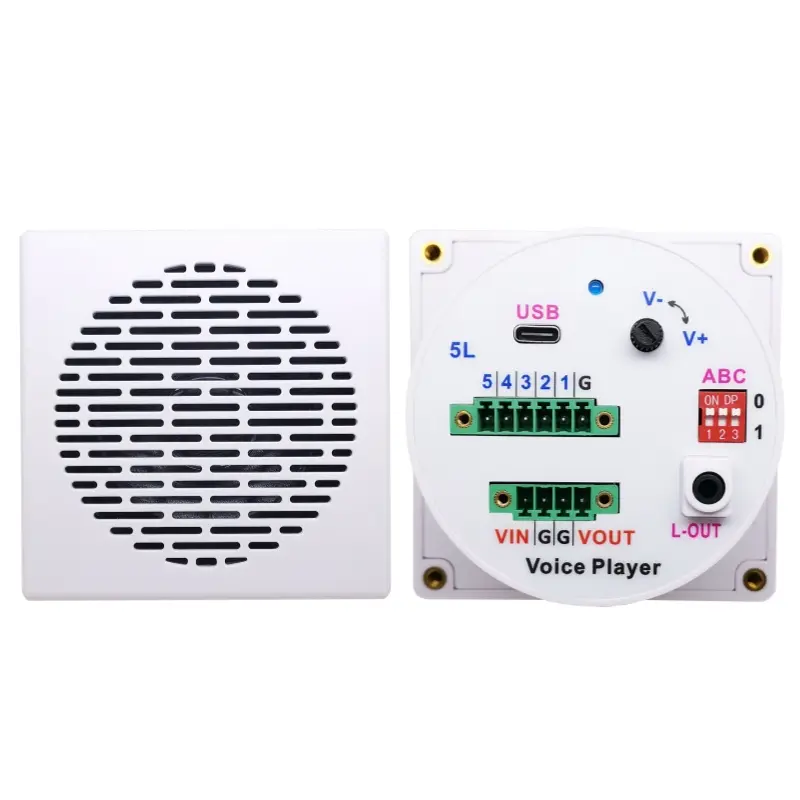

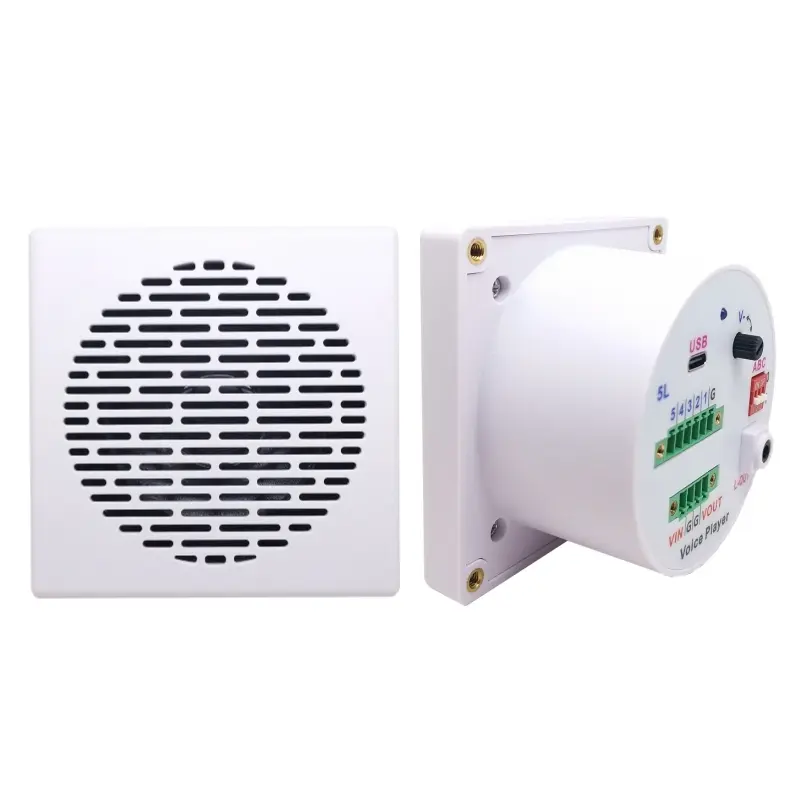

- Adopts exquisite ABS enclosure, and two colors (white and black) available.
- Built-in high quality audio decoder.
- Built-in 128MBytes flash memory.
- Built-in 5W 8Ohm speaker.

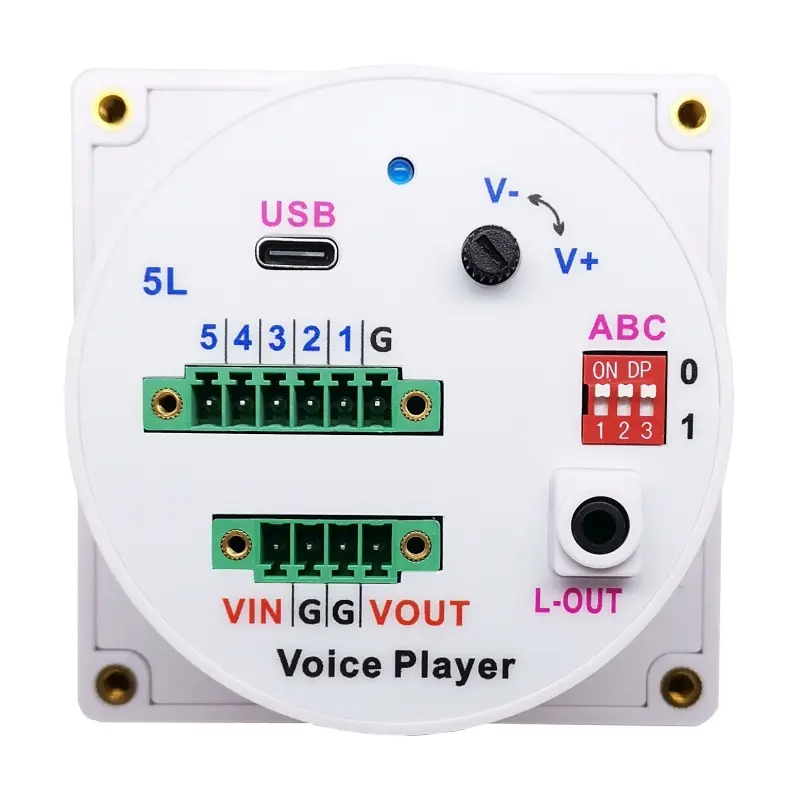

- 5 trigger inputs available and they can be connected to as many as 5 buttons/switches/relays, etc.
- Supports 8 types of trigger modes and each trigger mode can be set easily through the dip switch.
- Supports playback of max. 31 audio files through combination of the I/O ports.
- Upload audio files by connecting the type-C USB port to computer with a USB data cable.
- -No need any program/software. The internal memory will be detected as a USB flash drive on computer.
- Sound volume is adjustable through turning the potentiometer.
- Able to drive an external equipment like a warning light or a motor simultaneously through VCC output when it is playing a sound.
- Equipped with a 3.5mm audio port (line out) that can be connected to an external amplifier or an active speaker.
- Industrial grade design and strong anti-jamming capability.
1.2. Technical Parameters:
- Working voltage: 10-30V DC
- Working current: ≥1000mA
- Power consumption: ≤5W
- Flash memory size: 128MBytes
- Audio format: MP3 or WAV
