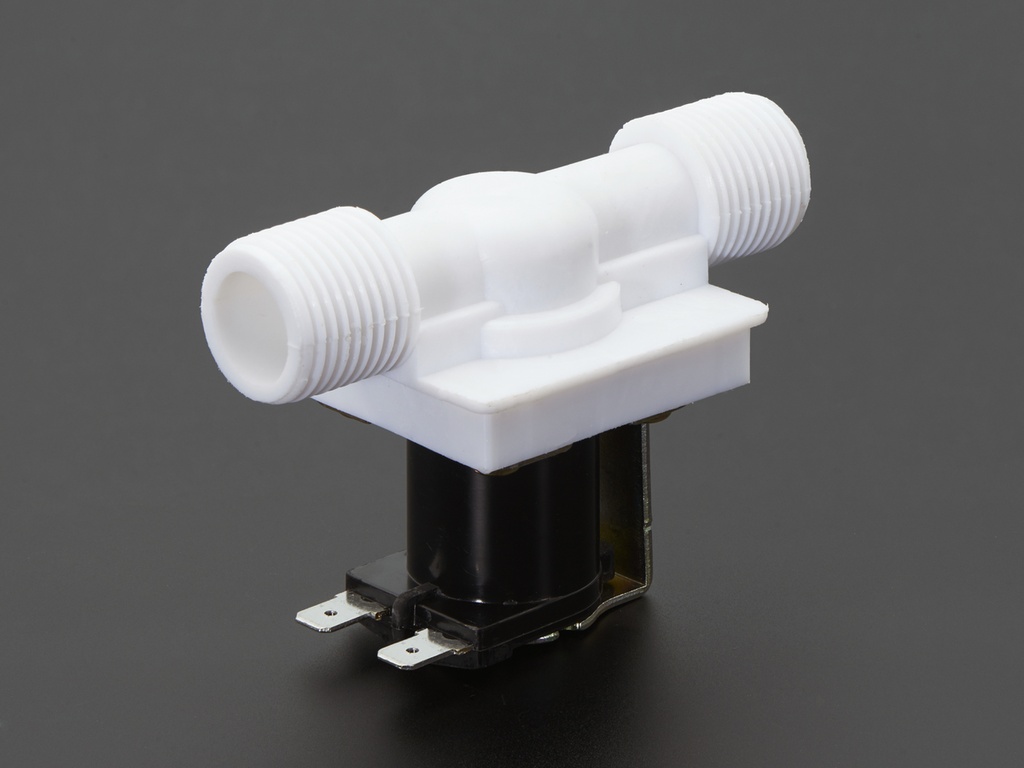

Plastic Water Solenoid Valve - 12V - 1/2" Nominal

  • WeightMajor
  • WeightMinor

8.95 8.95 8.950000000000001 USD

8.95

This combination does not exist.

Add to Cart

SKU : ADA-997
Quantity on Hand : 4
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description:

    Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2" (Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, liquid can only flow one direction.

    We tried this solenoid at various DC voltages and found we could actuate it down at 6VDC (although it was a little slower to open). Here is the current draw table for various voltages. We suggest a TIP120 or N-Channel power FET with a 1N4001 kickback diode to drive this from a microcontroller pin. For a power supply, our 9V 1A or 12V 1A power adapters will do the job.

    Voltage Current:

    • 6V160 mA

    • 7V190 mA

    • 8V220 mA

    • 9V240 mA

    • 10V270 mA

    • 11V300 mA

    • 12V320 mA

    These solenoids are not rated for food safety or use with anything but water.
