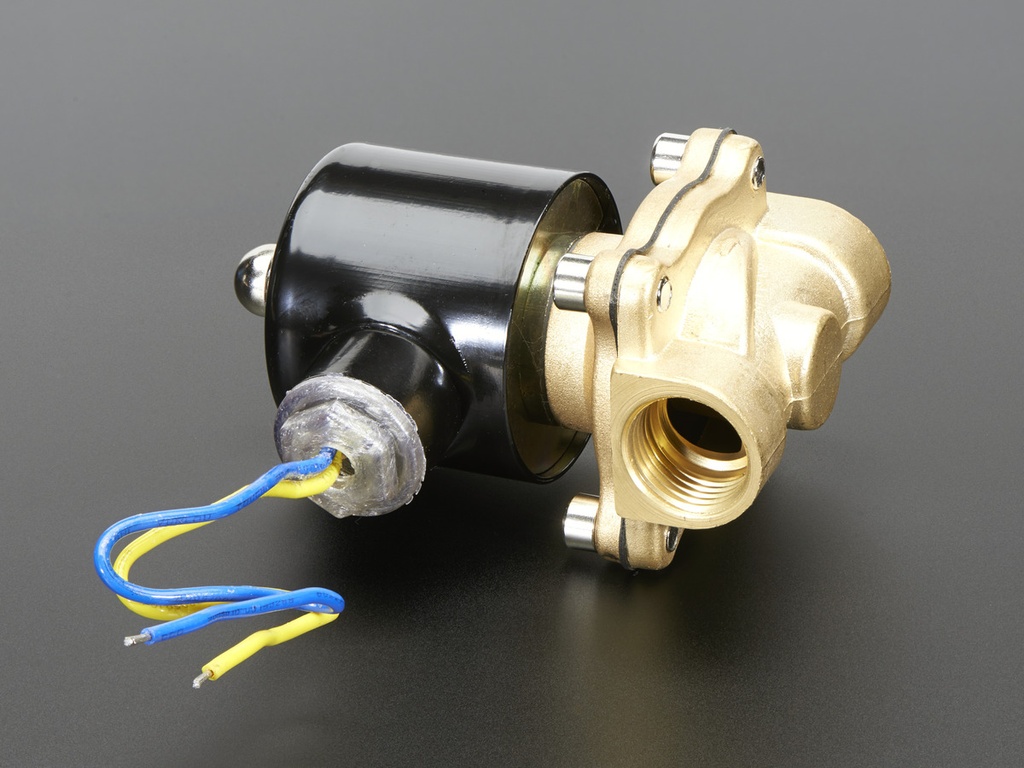

Brass Liquid Solenoid Valve - 12V - 1/2 NPS

  • WeightMajor
  • WeightMinor

28.95 28.95 28.95 USD

28.95

This combination does not exist.

Add to Cart

SKU : ADA-996
Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description:

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening, aquarium, or pool project. There are two 1/2" (Nominal NPS) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can flow. Unlike the plastic solenoid valve, this one does not have a gasket, so there is no minimum pressure requirement. However, they aren't a perfect-perfect seal. When closed you may get drips when there's pressure from the water side.


We tried this solenoid at various DC voltages and found we could actuate it down at 6VDC (although it was a little slower to open). Here is the current draw table for various voltages. We suggest a TIP120 or N-Channel power FET with a 1N4001 kickback diode to drive this from a microcontroller pin. For a power supply, our 12V 5A power adapter will do the job.


These solenoids are not rated for food safety by any official standards. However, they are made of cast brass, with a rubber gasket made of NBR (Nitrile Rubber) so it can be used with any fluid that will not damage or be damaged by the rubber gasket material.
