EL wire 4xAAA pocket inverter

https://electronics123.odoo.com/web/image/product.template/12030/image_1920?unique=5882278
(0 review)

SKU : ADA-564
Quantity on Hand : 9
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-564 564

12.95 12.950000000000001 USD 12.95

12.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

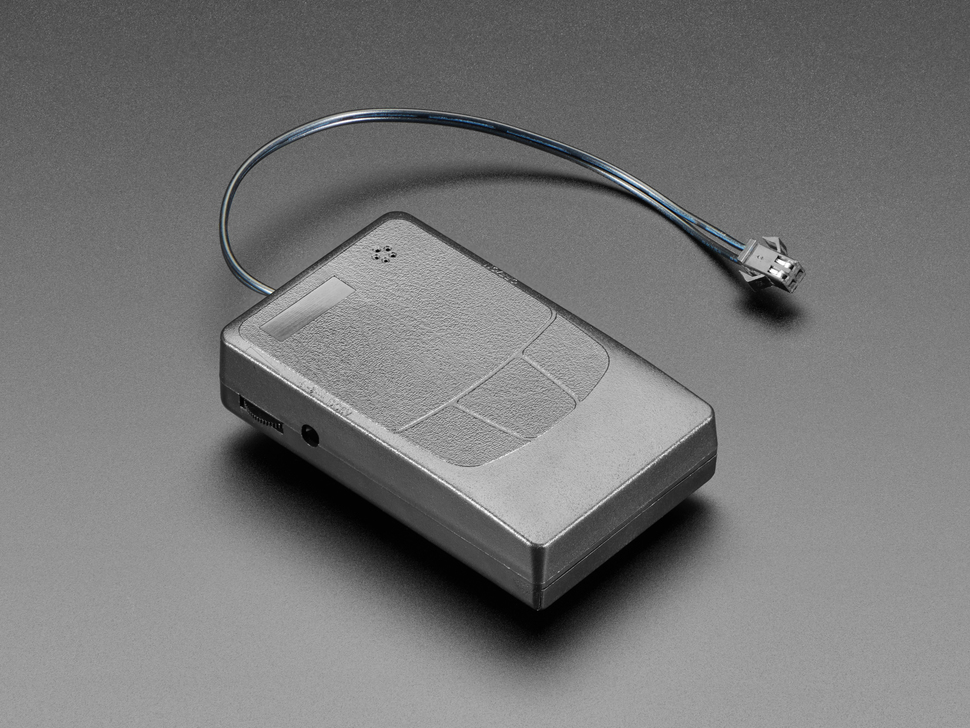

A small, portable inverter for EL wire. Powers off of 4 AAA batteries (not included!), it can drive 3-4 meters (10 to 13 feet) of our high-brightness EL wire OR 1 meter (3 feet) of EL tape OR a 10cmx10cm piece of EL panel for about 7 hours.

There is a switch for selecting steady/blink/off modes. Comes with four 2.5mm pitch female JST connectors, standard for all the EL wire and tape we carry. The JST cables snap into the inverter, so if you don't need all 4 cables, you can use as few as you want. The inverter does not 'sequence' the 4 cables, so if you use 'blink mode' all the strands will blink at the same time.

You can plug any of our EL wire/tape into this inverter directly. To connect a 'raw' piece EL wire to this, you'll want a male connector wire

The EL inverter requires a 'load' to stabilize itself. Do not run the inverter without at least 2 ft of EL wire attached! Otherwise the inverter can spike and damage itself

Like all inverters we've used, the 2000 Hz oscillation is slightly audible. To reduce the squeaking, we suggest opening up the case padding it with thick foam tape/weatherstripping. Squirting some hot glue around the capacitors may also help. We managed to get it silent this way.

    Features:

    Dimensions:

    • Inverter Size: 85mm x 55mm x 22mm (3.4in x 2.2in x 0.85in)
    • JST cable length: approx. 20 cm
    • Weight (without batteries): 60g

    Revision History:

    • As of August 16, 2021 - Wanyu (the original supplier) is no longer in business so we have changed to a different supplier. The quality and functionality are the same.
