Adafruit TSC2007 I2C Resistive Touch Screen Controller - STEMMA QT
(0 review)

SKU : ADA-5423
Quantity on Hand : 5
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-5423 5423

5.95 5.95 USD 5.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: Getting touchy performance with your screen's touch screen? Resistive touch screens are incredibly popular as overlays to TFT and LCD displays. The only problem is they require a bunch of analog pins and you have to keep polling them since the overlays themselves are basically just big potentiometers. If your microcontroller doesn't have analog inputs, or maybe you want just a way more elegant controller, the TSC2007 is a nice way to solve that problem.

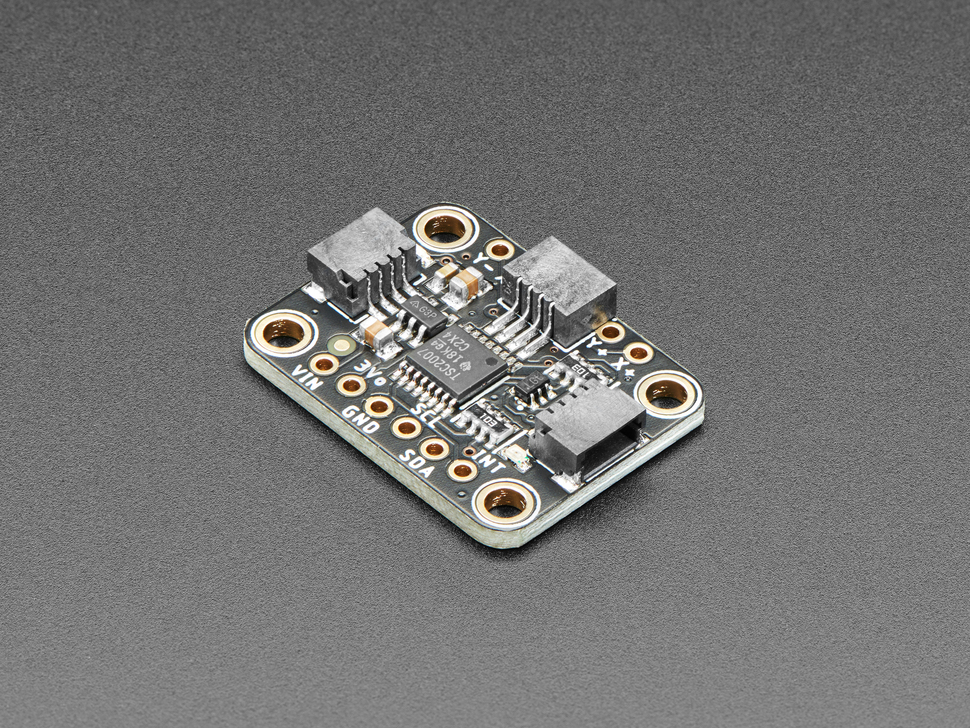

This breakout board features the TSC2007, which has an easy-to-use I2C interface available. There is also an interrupt pin that you can use to indicate when a touch has been detected to your microcontroller or microcomputer. We wrapped up the chip with a 3V voltage regulator and level shifting so it's safe to use with 3V or 5V logic. It's a nicely designed chip and has very stable precise readings. We found it's also a lot faster than trying to do all the readings on an Arduino.

For the screens that have 1mm pitch FPC cables, you can plug the cable right into the connector. The majority of medium/large touchscreens have that kind of connector. If you have another kind of touch screen, the four X/Y contacts are available on 0.1" pitch breakouts so you can hand-solder or wire them.

Getting started is super easy with our simple TSC2007 Arduino library or TSC2007 CircuitPython/Python library for microcontrollers or Raspberry Pi. Plug any 1mm-pitch 4-wire resistive touchscreen to the onboard FPC connector, then use the library example to read touchpoints with X, Y, and Z (pressure) results returned instantaneously. There's an IRQ pin that will drop low when a touch is detected, you can use that to reduce the I2C polling - we also have a red LED on that line which can help to debug as it should light when the panel is touched.


    • Uses default I2C address 0x48, two address pins allow up to 4 devices on one I2C bus

    • Product Dimensions: 25.5mm x 19.0mm x 4.6mm / 1.0" x 0.7" x 0.2"

    • Product Weight: 2.1g / 0.1oz
