Rugged Metal Pushbutton with Black Finish - 16mm 6V RGB Latching - 16mm Black Latching
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: By popular demand, we now have latching rugged metal push buttons with a full color RGB LED ring light! These black-plated metal buttons are rugged, but certainly not lacking in flair. Simply drill a 16mm hole into any material up to 1/4" thick and you can fit these in place – there's even a rubber gasket to keep water out of the enclosure.

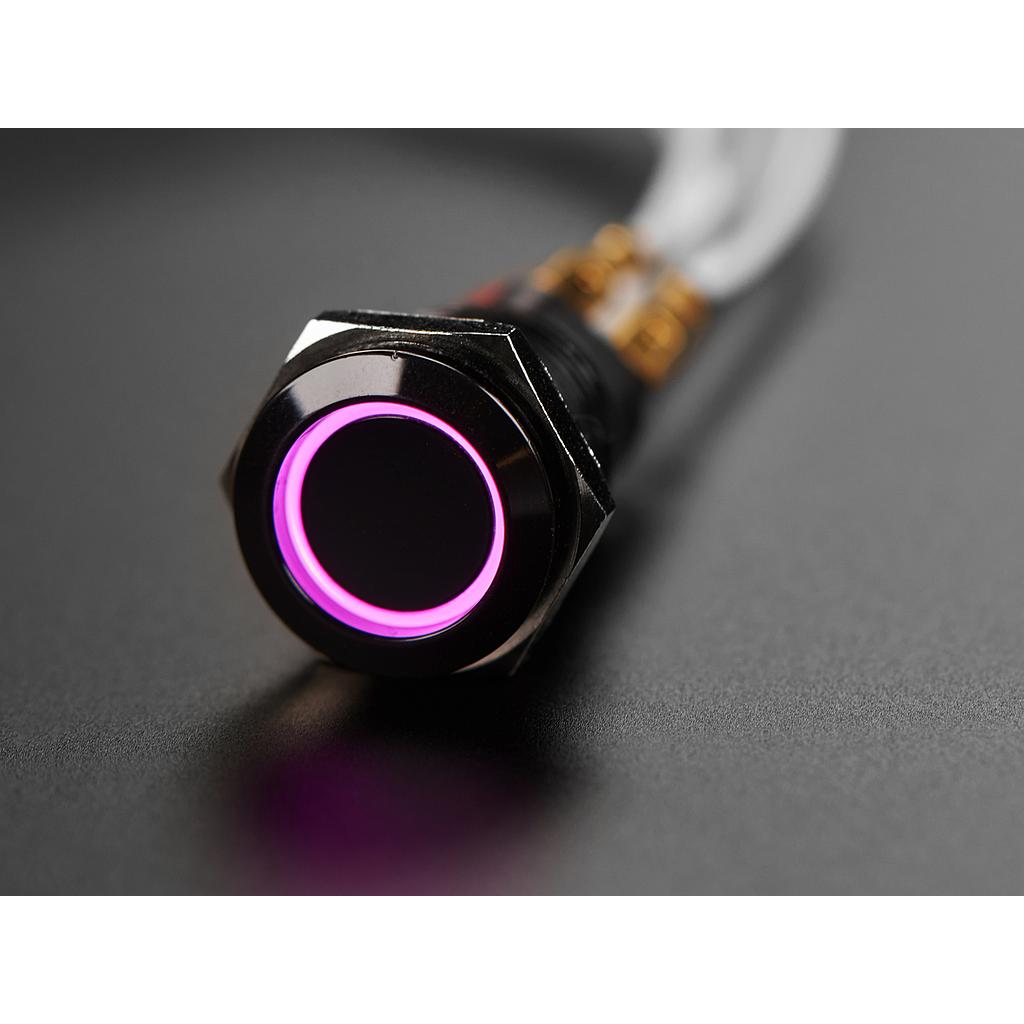

On the front of the button is a flat metal actuator, surrounded by a plastic RGB LED ring. On the back there are two gold contacts for the button and 4 for the RGB LED ring (one anode and 3 cathodes for each red, green, and blue). Power the anode at 3-6V and light up the red, green, and blue LEDs by pulling their designated contacts to ground as you desire – there's a built in resistor! If you want to use this with a higher voltage, say 12V or 24V, simply add a 1K ohm resistor in series with the LED cathodes to keep the LED current at around 20mA. You can PWM the RGB pins to make any color you like.
This button is a latching push button, when you press and release it the 'normally-open' contact shorts to the common contact and stays that way. When you press and release it a second time, the contacts open up again.
The switch and LED are electrically separated, so to change the color, use a microcontroller to both read the contact pins and toggle the color control pins.
