EL wire 2xAA pocket inverter

(0 review)

SKU : ADA-317
Quantity on Hand : 10
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-317 317

6.95 6.95 USD 6.95

6.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description:

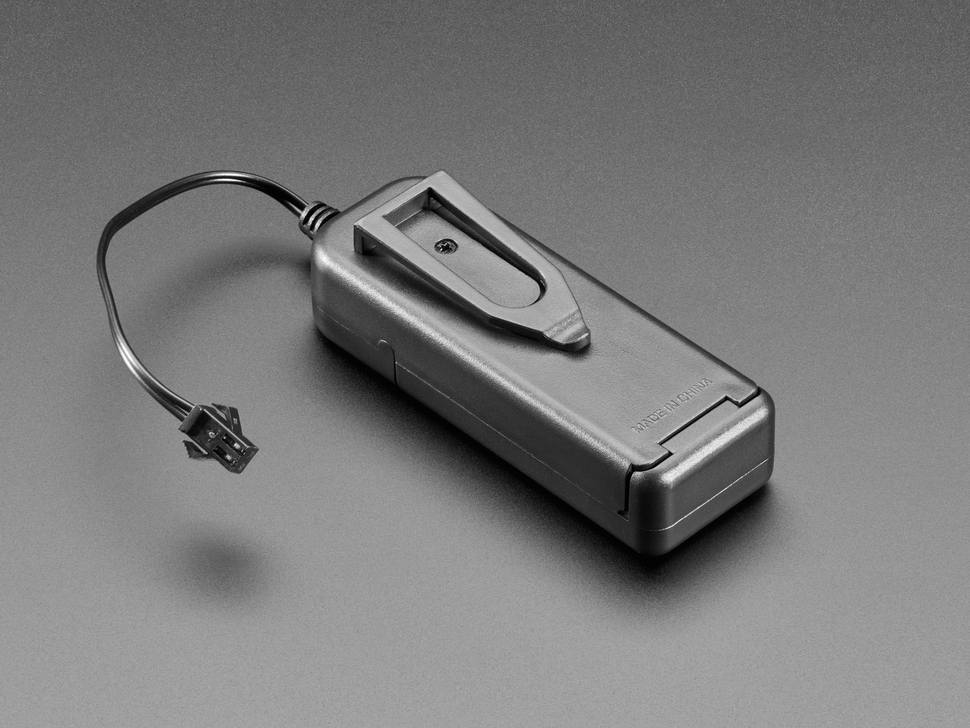

A small, portable inverter for EL wire. Powers off of 2 AA batteries (not included!), it can drive 1 to 8 feet (about 2.5m) of our high-brightness EL wire for 10 hours. There is a button for selecting steady/blink/off modes. There's a removable clip on the back. Comes with a 2.5mm pitch female JST connector

To connect a piece EL wire to this, you'll want a male connector wire

The EL inverter requires a 'load' to stabilize itself. Do not run the inverter without at least 1 ft of EL wire attached! Otherwise the inverter can spike and damage itself

Like all inverters we've used, the 2000 Hz oscillation is slightly audible. To reduce the squeaking, we suggest opening up the case padding it with thick foam tape/weatherstripping. Squirting some hot glue around the capacitors may also help. We managed to get it silent this way.

    Features:

    Revision History:

    • As of December 12, 2022 - This version has had an IC upgrade, the LED now has a light sequence flashing difference.
    • As of Tuesday, September 21, 2021 - Wanyu (the original supplier) is no longer in business so we have changed to a different supplier. The quality and functionality are the same. The 2 x AA El Wire Pocket Inverter now comes with a power button, status indicator LED, and a belt clip.

    Product Weight: 32.7g / 1.2oz
