Silicone Cover Stranded-Core Wire - 50ft 30AWG Red
SKU : ADA-3165
Quantity on Hand :
3
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: Silicone-sheathing wire is super-flexible and soft, and it's also strong! Able to handle up to 200°C and up to 600V, it will do when PVC-covered wire wimps out. We like this wire for being extremely supple and flexible, so it is great for wearables or projects where the wire-harness has to be able to deal with a lot of bending.

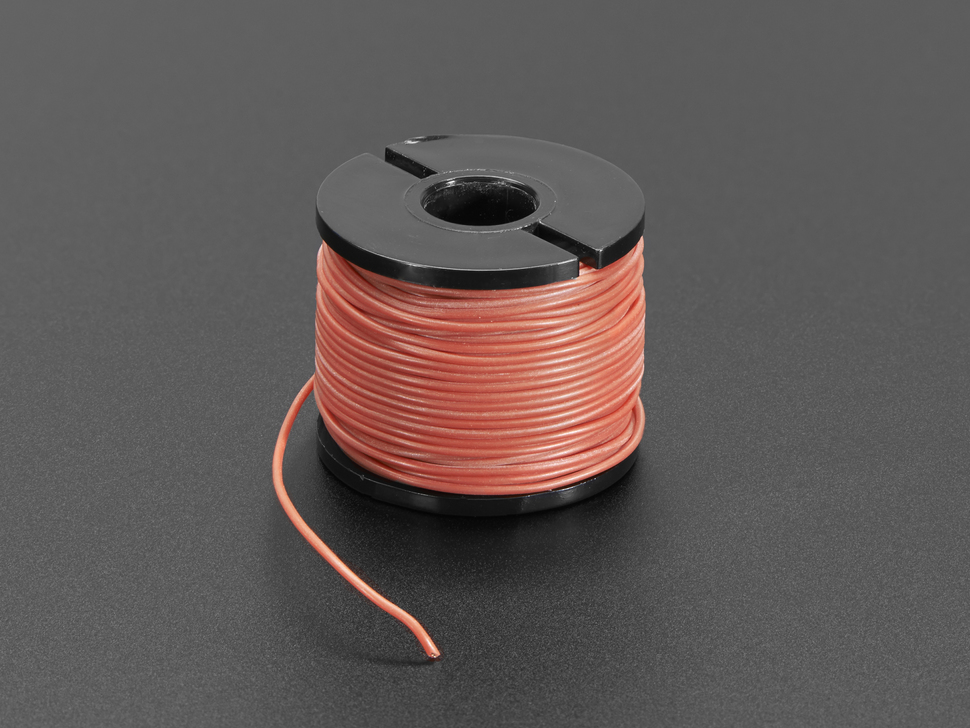

Comes with one 50ft spool of red wire. The wire is 30AWG stranded with an outer diameter of 0.8mm.
Features:
Length: 50ft / 15.2 meters
Outer Diameter: 0.8mm / 0.03"
Resistance: 331 Ω/Km
Current Handling Capability: ~0.8 A (depends on length and voltage!)
Temperature Range: -60°C ~ 200°C
Nominal Voltage: 600V
Weight: 23g
