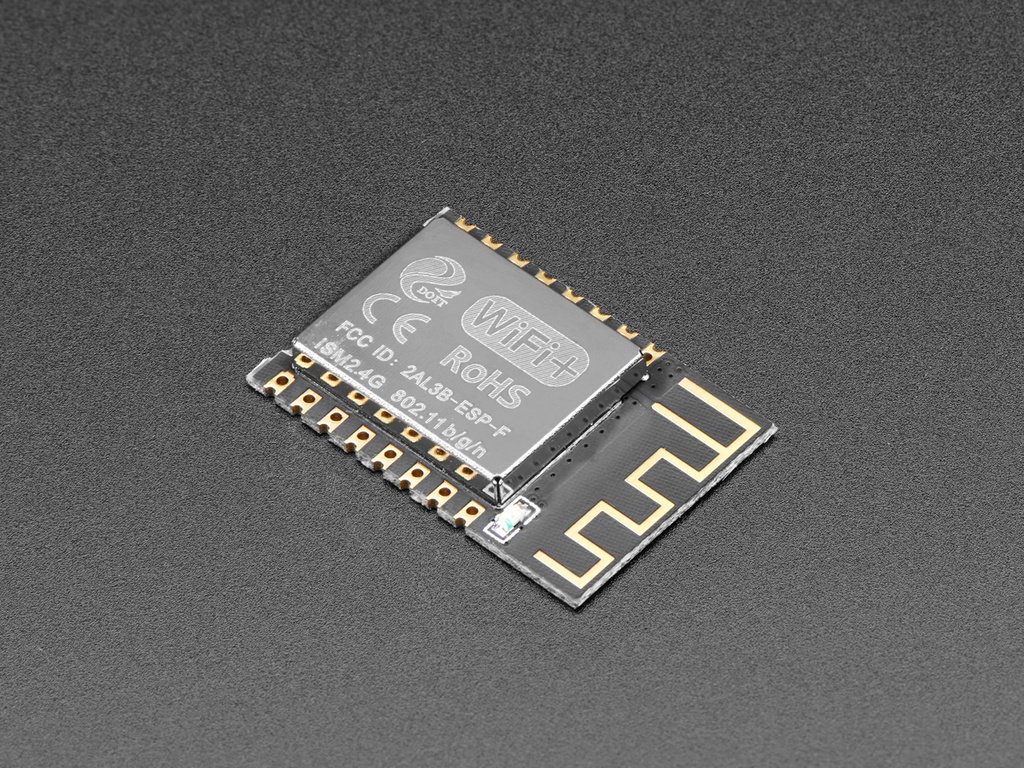

ESP8266 SMT Module - ESP-12F
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like! The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as client and access point) and TCP/IP stack with DNS support as well. We do sell these on a breakout, but maybe you wanna just put this in your own project PCB.
These modules are very easy to hand solder, with big pads!
Comes with 4MB flash chip, ESP processor, and onboard antenna. These come pre-progammed with the NodeMCU Lua firmware, so you are ready to rock. Some extra parts will be needed to get this going, check out the HUZZAH schematic for the extra components we recommend
- Dimensions: 24mm x16mm x 3mm / 0.9" x 0.6" x 0.1"
- Weight: 2g
- 4MB Flash
Once the user has seen at least one product this snippet will be visible.
Recently Viewed Products
Documentation and Downloads
FCC test report for the module (FCC ID: 2AHMR-ESP12S)
FCC test report for the ESP-12F module (FCC ID: 2AL3B-ESP-F)
Huuuuge amount of information on http://www.esp8266.com/ community forum!
NodeMCU (Lua for ESP8266) webpage with examples and documentation on the Lua framework
Arduino IDE support for ESP8266
