2.4GHz Mini Flexible WiFi Antenna with uFL Connector - 100mm
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

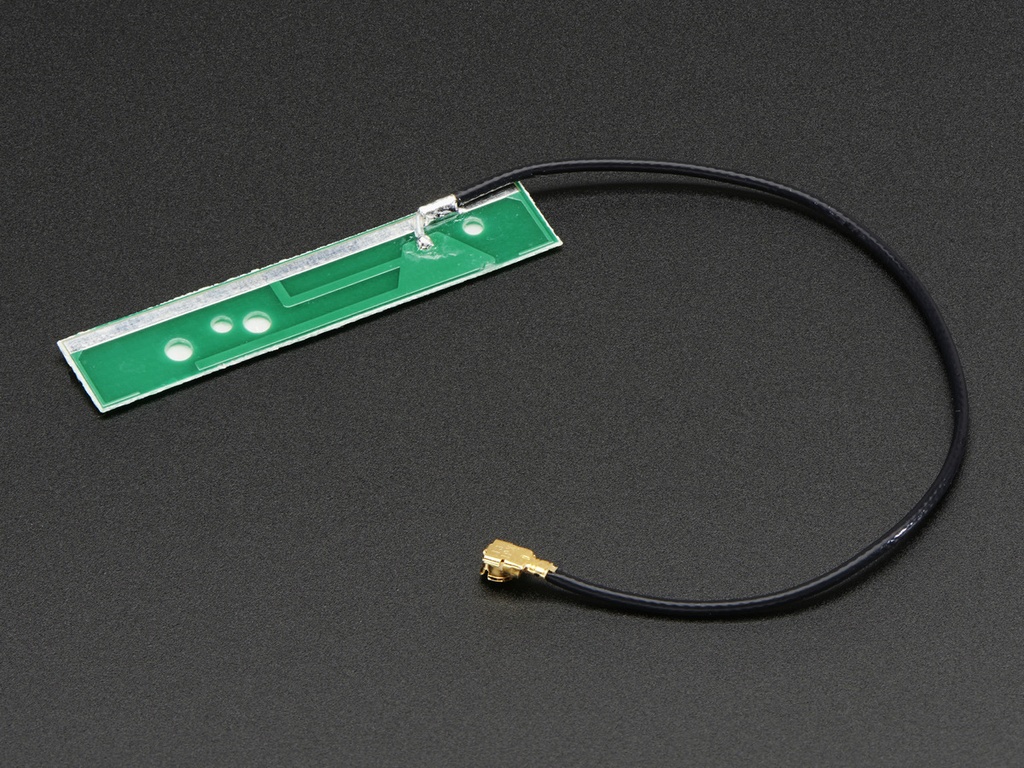

Description: This 4" / 100mm long flexible uFL 2.4GHz antenna has approx 4DBi gain and a 50Ω impedance so it will work fantastically with just about any 2.4-2.5GHz wireless receiver/transmitter such as the Adafruit CC3000s!
Antenna comes with a uFL (a.k.a u.FL / IPX / IPEX) connector, so no more need for additional adapters to get your IoT cloud flying high!
- Operating Range: 2400~2500MHz / 4900~5900MHz
- Efficiency: 90%
- Bandwidth (VSWR: 2.0 max.) 140 MHz / SWR < 2.0
- Polarization: Linear
- Radiation: Omni directional
- Antenna Gain: 4DBi
- Impedance: 50 ohm
- Cable: 100mm / 4" long
- Antenna: 40mm x 8mm / 1.6" x 0.3"
- Weight: 0.7g
