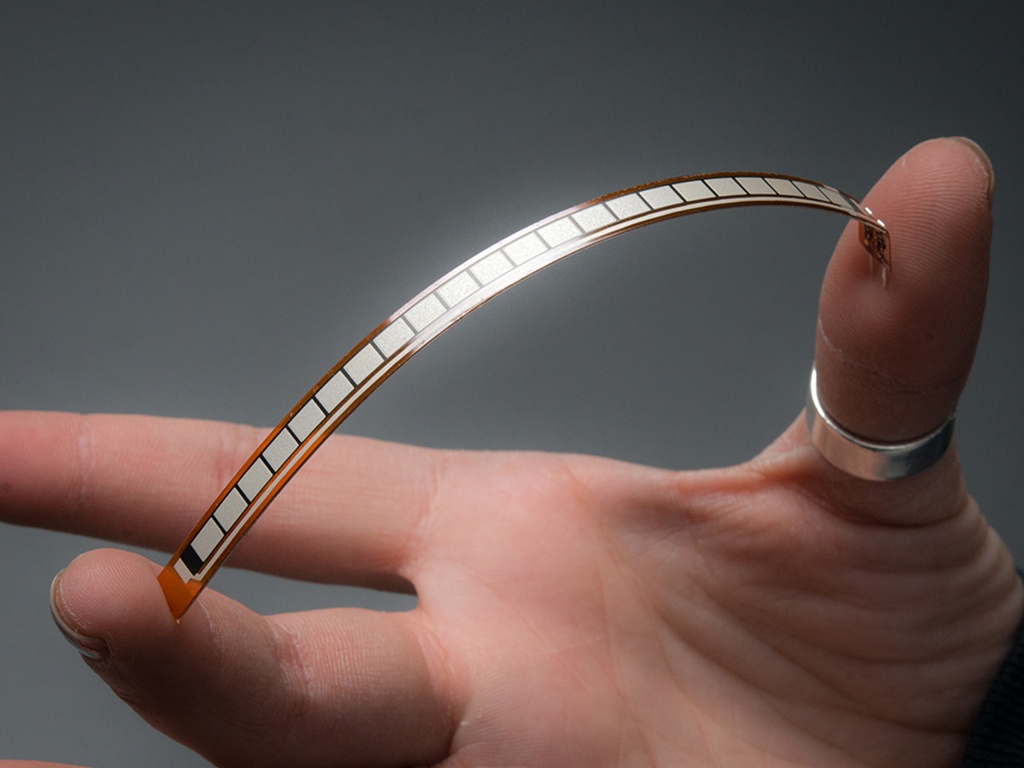

Long Flex sensor

  • WeightMajor
  • WeightMinor

15.95 15.95 15.950000000000001 USD

15.95

This combination does not exist.

Add to Cart

SKU : ADA-182
Quantity on Hand : 5
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description: This sensor can detect flexing or bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.


These sensors are easy to use, they are basically resistors that change value based on how much they're flexed. If they're unflexed, the resistance is about ~10KΩ. When flexed all the way the resistance rises to ~20KΩ. They're pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a microcontroller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.


The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!

    Dimensions:

    • Length: 112.5mm/4.4in

    • Width: 6.38mm/0.25in

    • Thickness: 0.5mm/0.2in

    • Weight: 0.5g/0.017g
