Adafruit Micro Lipo - USB LiIon/LiPoly charger - v1
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

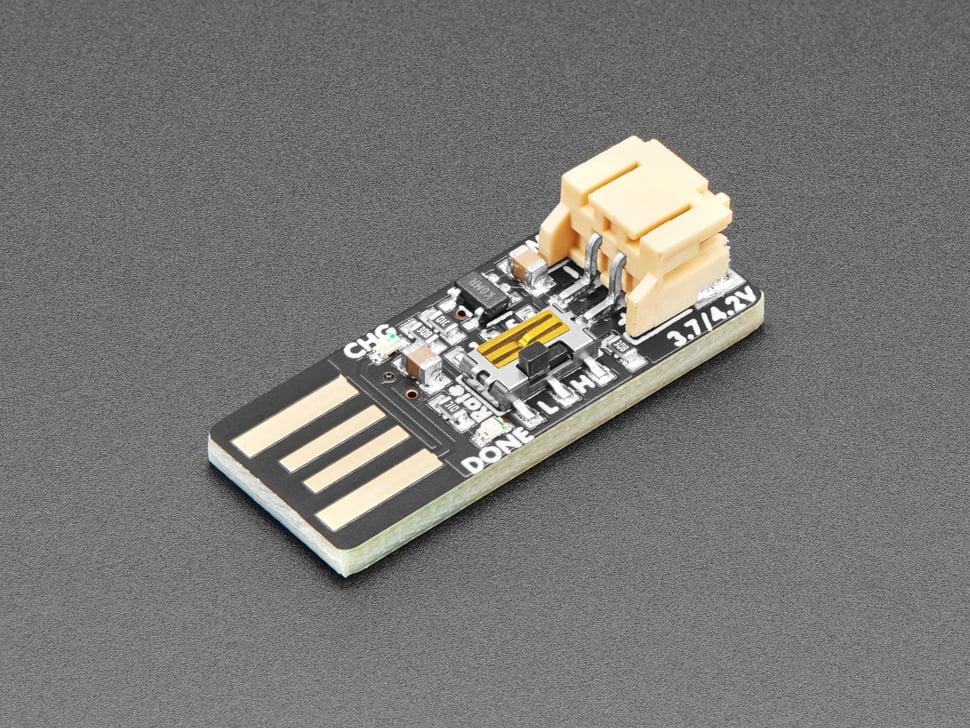

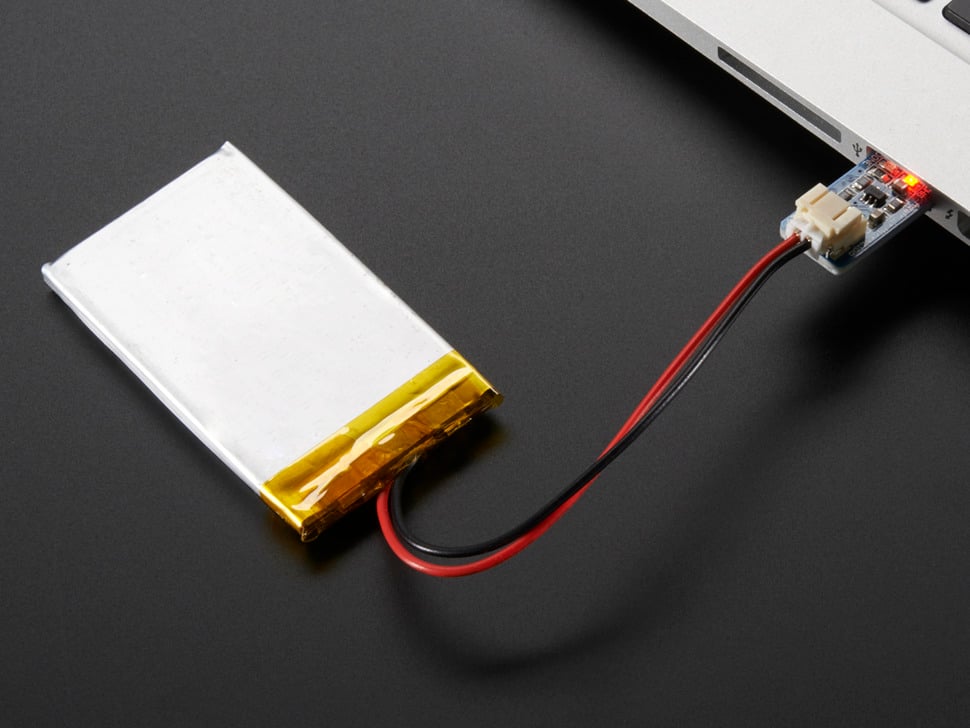

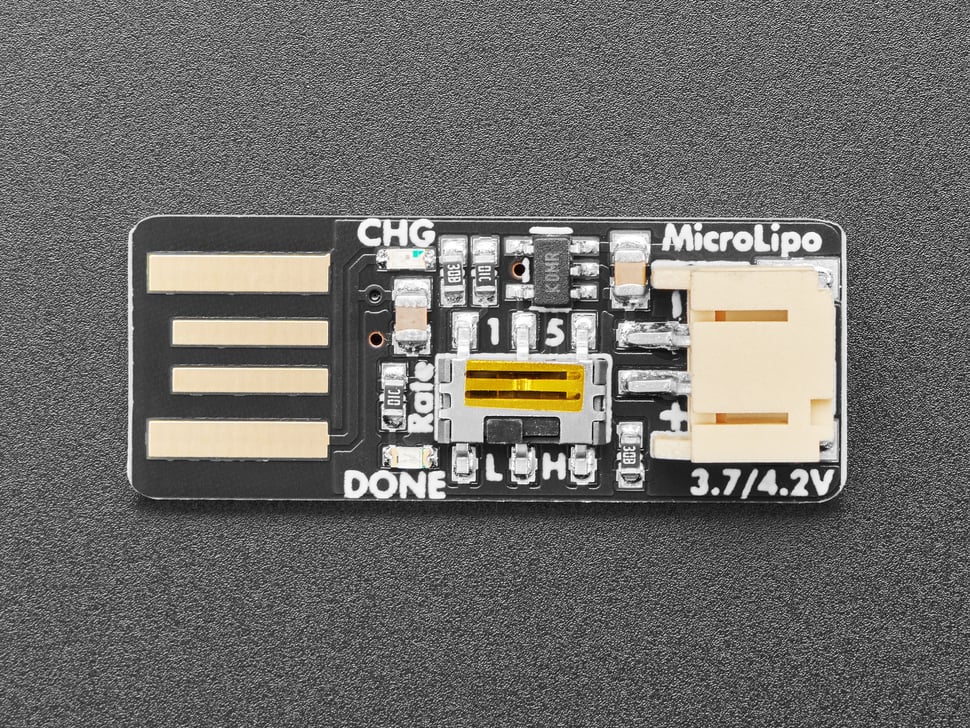

Description: Oh so adorable, this is the tiniest little lipo charger, so handy you can keep it in any project box! It's also easy to use. Simply plug the gold plated contacts into any USB port and a 3.7V/4.2V lithium polymer or lithium-ion rechargeable battery into the JST plug on the other end. There are two LEDs - one red and one green. While charging, the red LED is lit. When the battery is fully charged and ready for use, the green LED turns on. Seriously, it could not get easier.
Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge, and finally a constant-voltage trickle charge to keep the battery topped up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the back, for when you'll only be charging batteries with 500mAh size or larger.
For use with Adafruit LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity, or pinout.

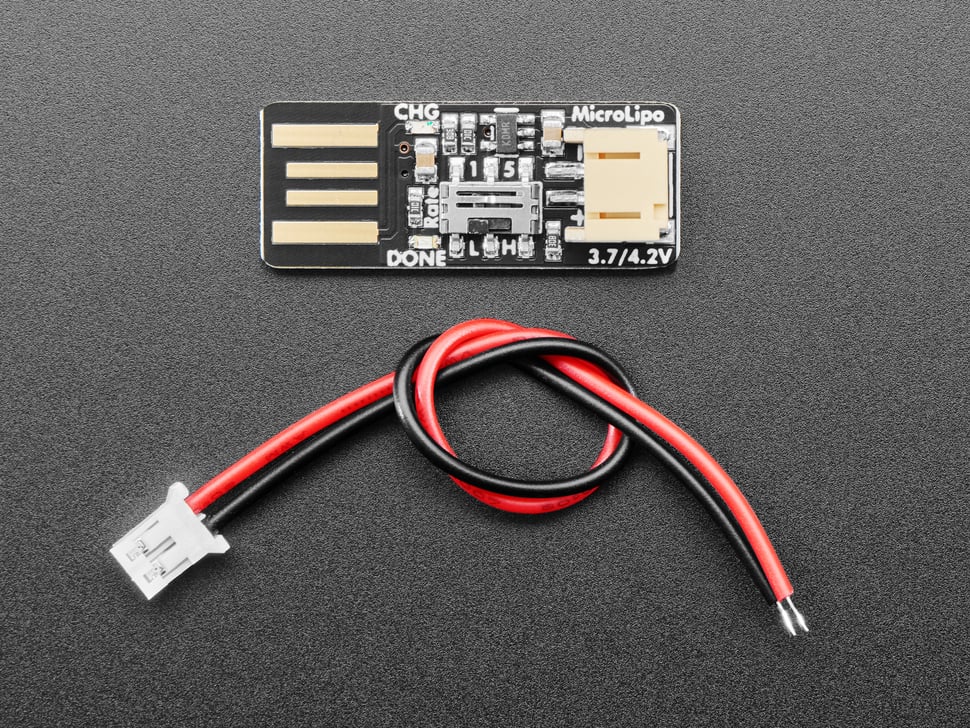

Comes assembled and tested with a free bonus JST cable!
5V input via PCB-style USB connector
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
100mA charge current, adjustable to 500mA by soldering a jumper closed
Free 2-pin JST cable included!
The MicroLipo charger can get hot during charging. Grab it by the sides and unplug then let it cool before removing the battery - take care not to touch the components during charging!
Batteries are not included.

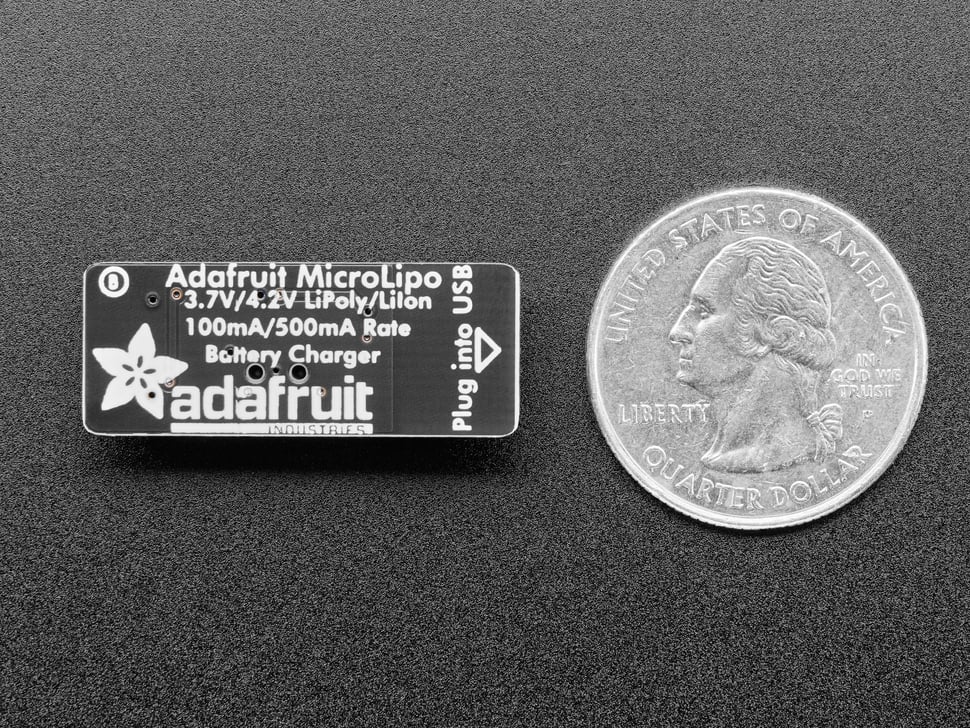

Dimensions: 30mm x 12.5mm x 8mm (1.2in x 0.3in x 0.3in)
Documentation and Downloads
