SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!

https://electronics123.odoo.com/web/image/product.template/11859/image_1920?unique=aeadfa4
(0 review)

SKU : ADA-1208
Quantity on Hand : 10
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-1208 1208

7.95 7.95 USD 7.95

7.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

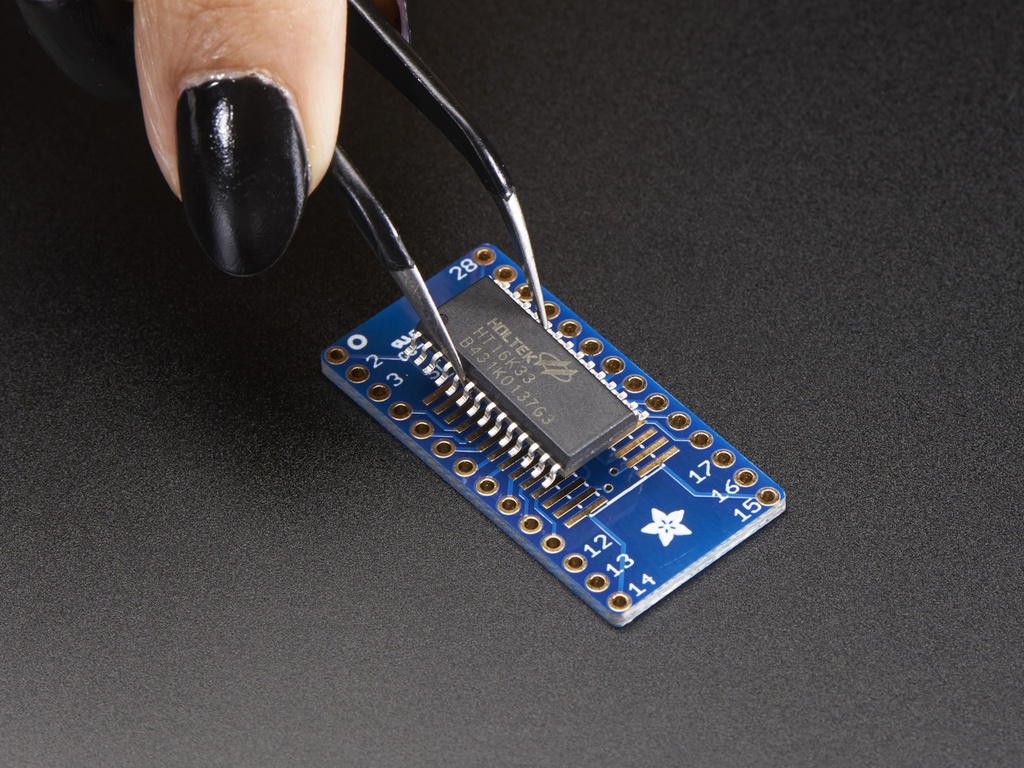

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 28-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 28-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip but the pin numbering wont be right so use care.

Note: Does not include headers.
