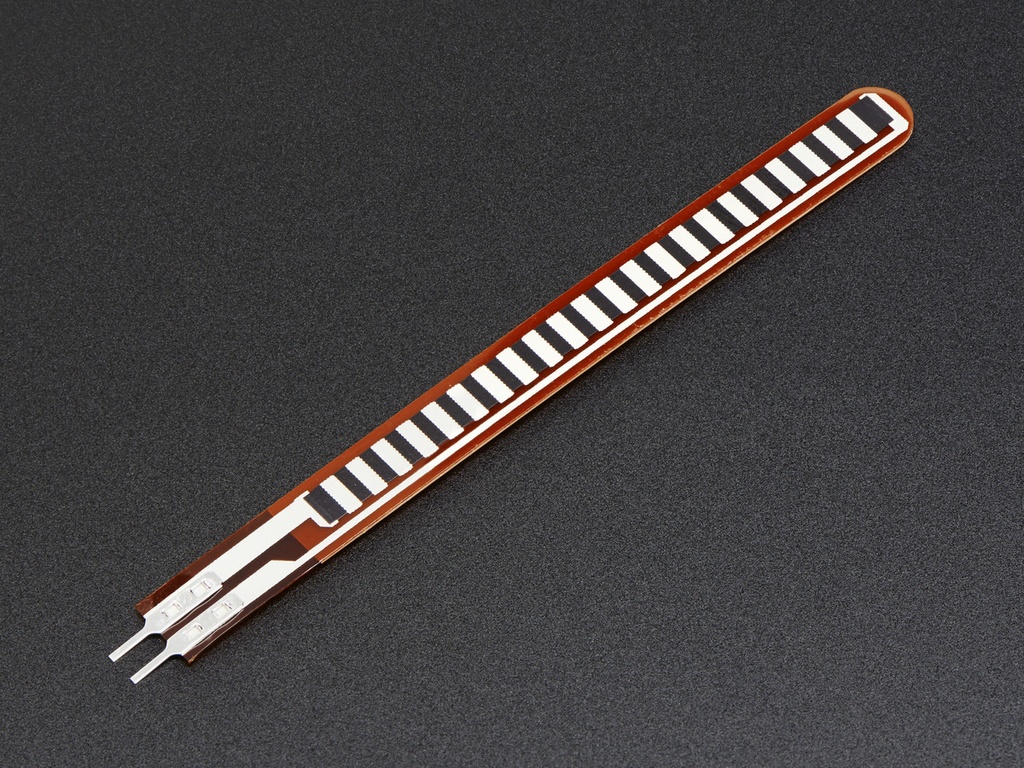

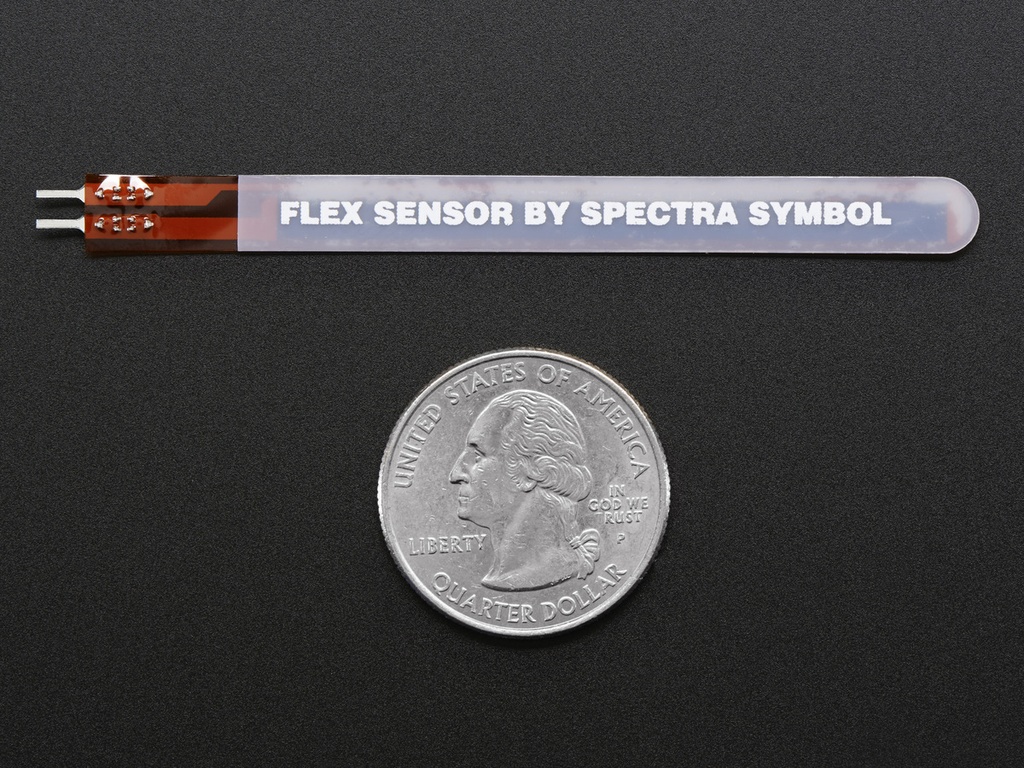

Short Flex Sensor

https://electronics123.odoo.com/web/image/product.template/11782/image_1920?unique=5013cf0
(0 review)

SKU : ADA-1070
Quantity on Hand : 8
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-1070 1070

9.95 9.950000000000001 USD 9.95

9.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This sensor can detect flexing or bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.

These sensors are easy to use, they are basically resistors that change value based on how much their flexed. If they're unflexed, the resistance is about ~25KΩ. When flexed all the way the resistance rises to ~100KΩ. They're pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a micro-controller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.


The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!

    Dimensions:

    • Length: 77.57mm/3.054in
    • Width: 6.41mm/0.2525in
    • Thickness: 0.48mm/0.019in
    • Weight: 0.27g/0.0095oz
