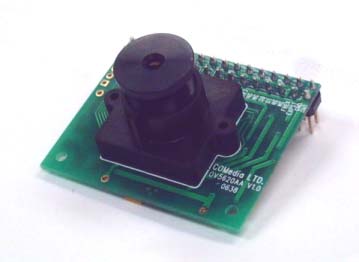

Description: Digital sensor module using Omnivision's OV5620 Mega-pixel CMOS image sensor.
5.17Meg CMOS image sensor,OV5620
Resolution 2592 x 1944
Lens format: 1/2.5"
Small size : 41 x 34 mm
Built-in Lens (Optional)
10Bit RGB raw data output
Serial Camera Control Bus interface
Single 3.3V operation
Low power consumption
NOTE 1: Because of the difficulty in working with the module alone, and the limited technical support available, it is highly recommended that the EVU20 USB2.0 EV board also be bought with this module.
NOTE 2: These drivers only run on WindowsXP. You can downloaded the Microsoft virtual machine and WinXP mode for Windows7 Professional and the EVU20 and AA5620 hardware and driver works fine under virtual WinXP mode. This link provides the Virtual Machine for WinXP on Win7 Professional:
Install the virtual machine under Win7 Professional and then launch WinXP mode from the start menu. Reboot and the log into WinXP virtual machine again and install the EVU20 as described in included documentation (be sure to install the drivers and reboot before you plug the camera in for the first time). The virtual machine has a USB activation menu to bridge the Win7 Professional hardware to WinXP. The Omnivision Supercam is listed in the virtual machine USB menu and must be enabled to allow WinXP to see the hardware as well. Good news for all the Win7 Professional users who don't have WinXP anymore...
Documentation and Downloads
- AA5620 Module Data Sheet
- OV5620 sensor Data Sheet
- Software driver for EVU20 + AA5620 Module (BE SURE TO INSTALL THE DRIVER BEFORE YOU PLUG THE CAMERA IN THE FIRST TIME.) If you receive a "Code 10" error after installing this driver, you will need to reinstall the driver but replace the "5620.set" file in the driver directory with the one you can download and unzipped here: 5620.set replacement file
