AA5620 Camera module

    14.00 14.00 14.0 USD


    This combination does not exist.

    Add to Cart

    SKU : AA5620
    Quantity on Hand : 2
    Skill Level : Assembled and Tested
    ROHS Compliant

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!

    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions

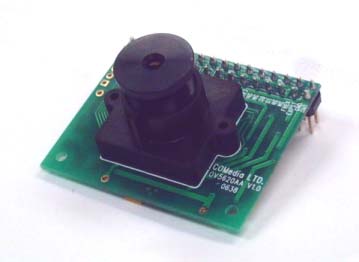

    Description: Digital sensor module using Omnivision's OV5620 Mega-pixel CMOS image sensor.


    • 5.17Meg CMOS image sensor,OV5620

    • Resolution 2592 x 1944

    • Lens format: 1/2.5"

    • Small size : 41 x 34 mm

    • Built-in Lens (Optional)

    • 10Bit RGB raw data output

    • Progressive Scan

    • Serial Camera Control Bus interface

    • Single 3.3V operation

    • Low power consumption

    NOTE 1: Because of the difficulty in working with the module alone, and the limited technical support available, it is highly recommended that the EVU20 USB2.0 EV board also be bought with this module.

    NOTE 2: These drivers only run on WindowsXP. You can downloaded the Microsoft virtual machine and WinXP mode for Windows7 Professional and the EVU20 and AA5620 hardware and driver works fine under virtual WinXP mode. This link provides the Virtual Machine for WinXP on Win7 Professional:

    Install the virtual machine under Win7 Professional and then launch WinXP mode from the start menu. Reboot and the log into WinXP virtual machine again and install the EVU20 as described in included documentation (be sure to install the drivers and reboot before you plug the camera in for the first time). The virtual machine has a USB activation menu to bridge the Win7 Professional hardware to WinXP. The Omnivision Supercam is listed in the virtual machine USB menu and must be enabled to allow WinXP to see the hardware as well. Good news for all the Win7 Professional users who don't have WinXP anymore...

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently Viewed Products

    Documentation and Downloads
