Waterproof PIR Motion Activated Audio Player for Outdoor Use
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Features:
Adopts PIR detection technology and automatically plays the sound file when a human body is detected.
The detection distance of the PIR sensor is up to 6 meters, and the detection angle is 120 degrees.
Built-in a high-quality MP3 player with high audio reproduction.
Works with most Windows, Mac, and Linux systems
Able to record/update the sound files through the micro USB port. (micro USB cable included)
Equipped with 512MB microSD card (included) (supports max. 32GB microSD card).
Supports to multiple sound files in the memory and plays the next one of the tracks after each activation.
Internal 20 Watt power amplifier for loud and clear sound output.
Volume is adjustable through the potentiometer on the housing.
Uses solid and durable aluminum housing to ensure waterproof class IPX6.
12V DC power input (12V AC/DC power adapter included) also possible to use a 12V external battery (not included).
Easy installation and it works as long the power is up. Installation Hardware brackets supplied.
Dimensions: 315mm x 152mm x 90mm (12.4" x 6" x 3.5")
Technical Parameters:
Working voltage: 12V DC
Working current: ≤1000mA
Standby current: ≤40mA
Rated audio power output: 20Watts
Audio format: MP3
PIR Distance: ≤ 6m (20ft)（120° of range）
Application Occasions: Parks, gardens, squares, swimming pools, golf courses, airports, stadiums, school playgrounds, and so on.

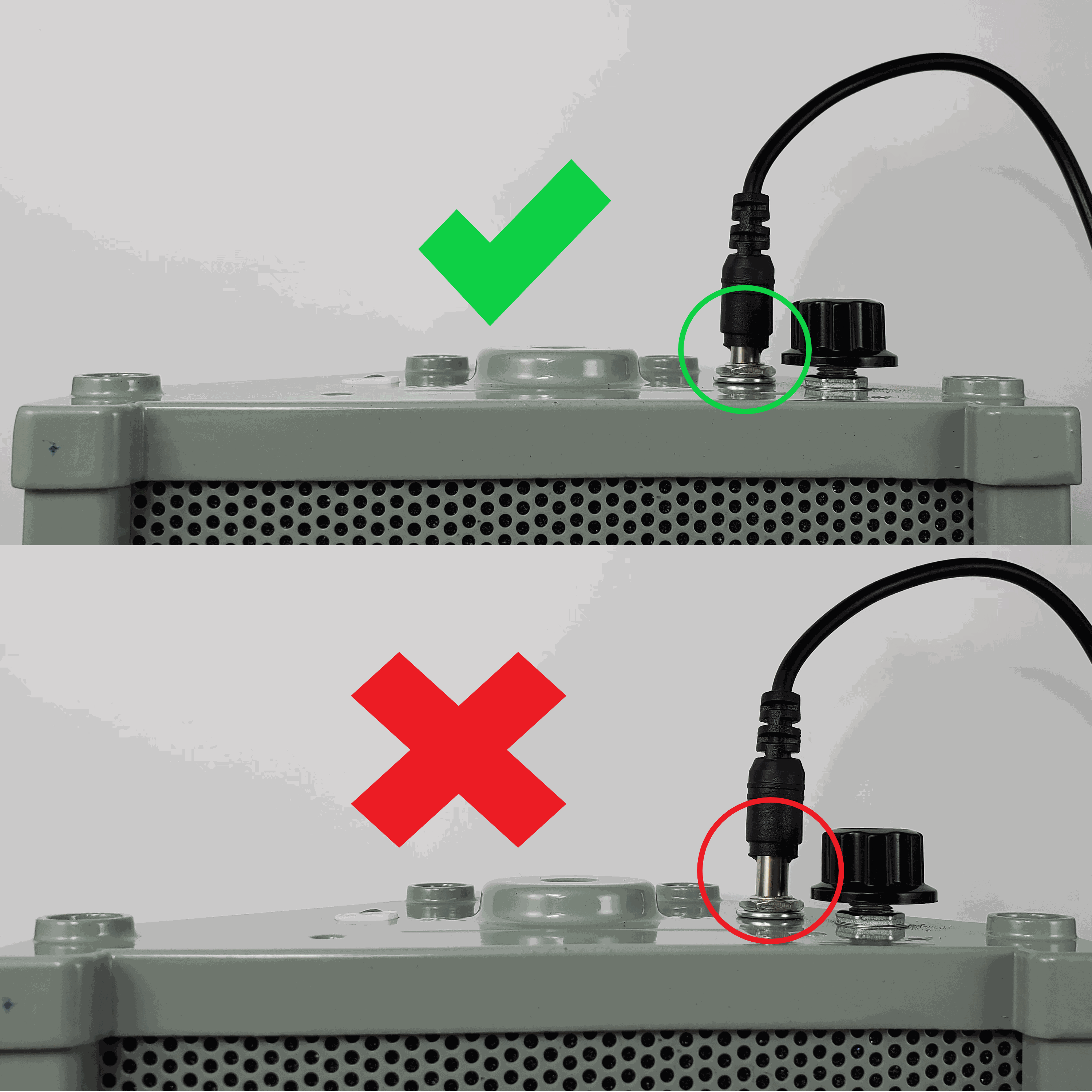

Note: See picture below to make sure the power supply is plugged in properly.
