Digital Panel Meter LCD - 9V DC
SKU : PMLCD
Quantity on Hand : 20
Skill Level : Component or Part
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
- 3 1/2 LCD panel meter
- Single 9V DC operation
- Power consumption: 1 mA DC
- High input impedance: > 100 Mohm
- Optional resistor set: PM/RES
- Display: 3 1/2-digit LCD
- Input sensitivity: 200 mV FS
- Power supply: 9 VDC (7 - 12 VDC)
- Decimal point selection: with wire jumper
- Automatic polarity indication
- Figure height: 0.52"
- Sampling rate: 2 - 3 readings / sec.
- Guaranteed zero reading for 0V input
- High input impedance: > 100 MOhm
- Accuracy: ± 0.5%
- Power consumption: 1mA DC
- Size: 2.7" x 1.7"

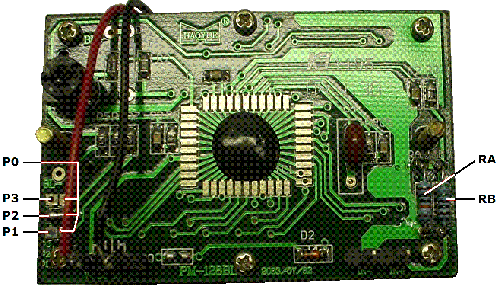

Q: Where are the connection points for the decimal separator (P0~P3) and voltage divider (RA and RB) located ?
A: Refer to this illustration:
