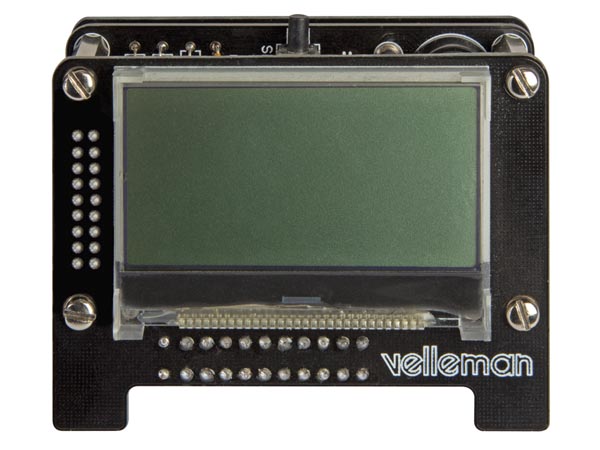

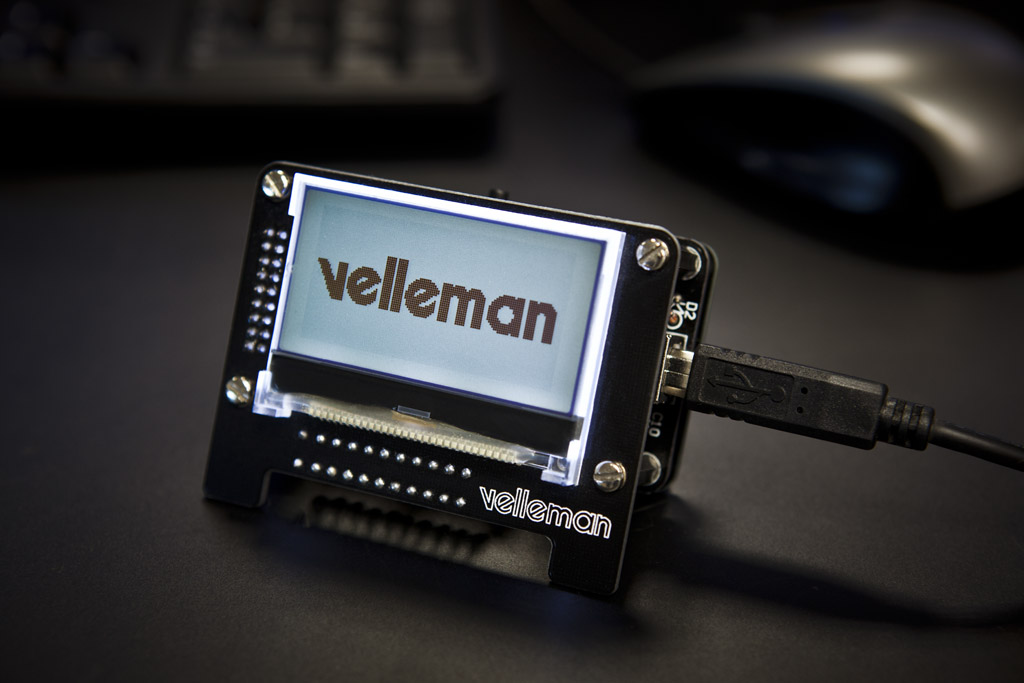

Description: Stay up to date on your e-mails and Twitter posts, or display your driver's data on this little message board! Aside from a display, this kit also has a button, a buzzer and an LED backlight. Simply plug its USB cable into your pc and download the example programs or write your own applications in C#.

Add another screen to your computer that shows you the information you want!

Even if your main screen is turned off

Check out all available commands in the features below!


  • LED - backlight (white)
  • LCD resolution: 128 x 64 pixels
  • USB powered
  • max. power consumption: 35 mA
  • dimensions: 77.5 x 60.5 x 38 mm (3.05" x 2.4" x 1.5")


  • 4 downloadable example programs with source code supplied
    • twitter display: displays the incoming feeds

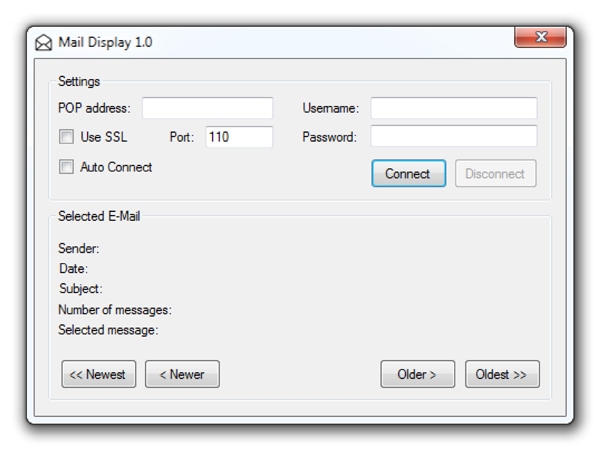

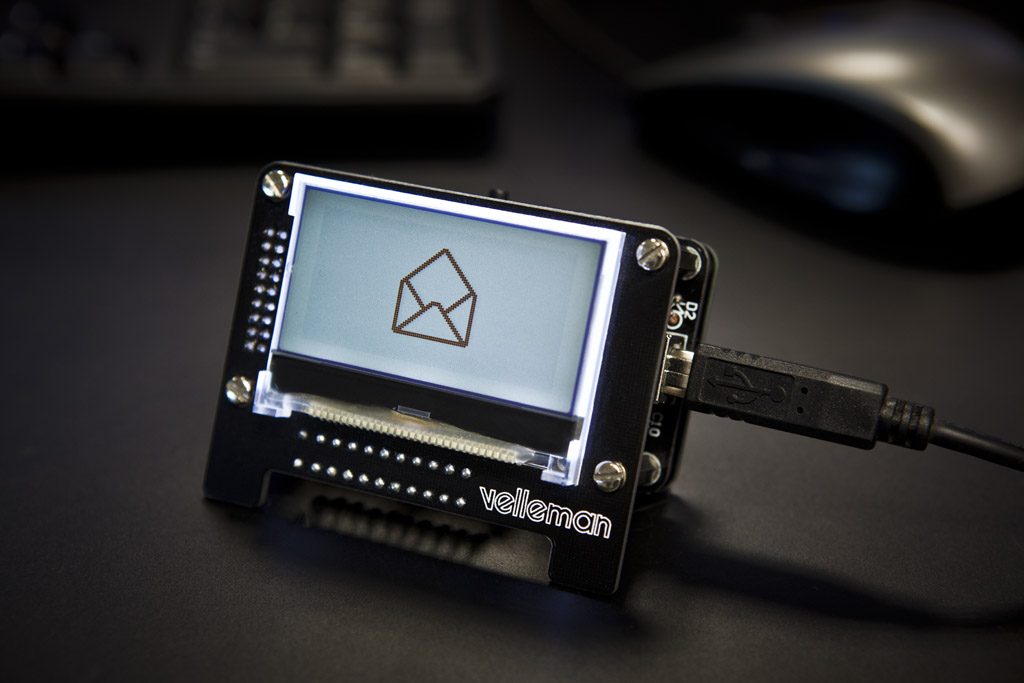

    • mail display: shows incoming mail subjects
    • drive display: shows info of your HDD

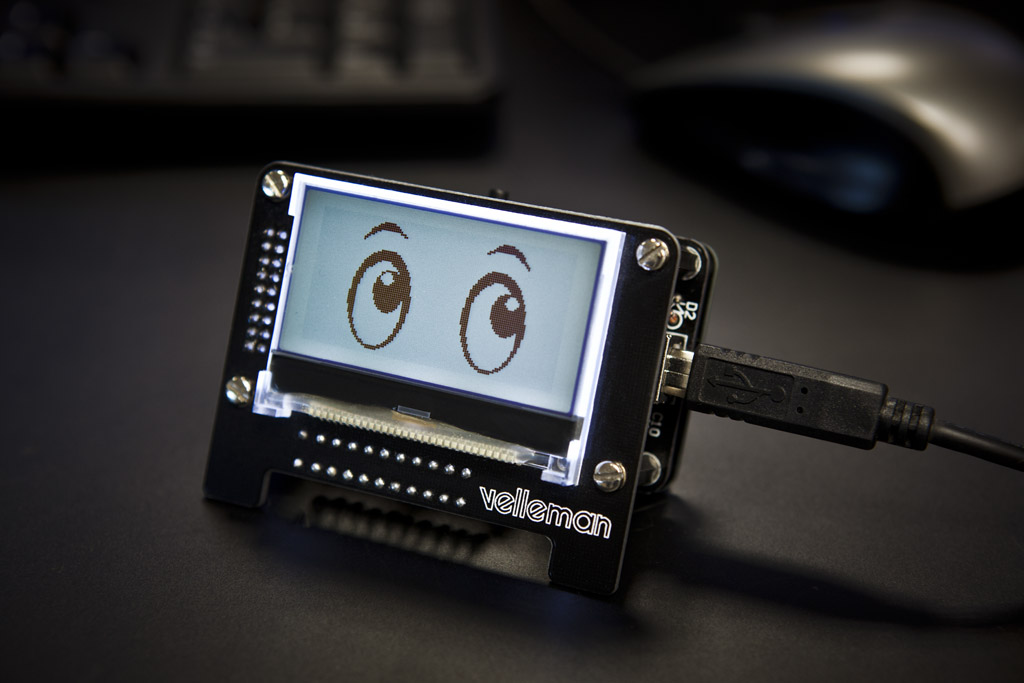

    • eyes display: mouse movement and click animation
  • DLL supplied to easily code your own applications ( - C#)
  • 1 button with 2 programmable functions (short & long press)
  • equipped with a buzzer that can be configured through software

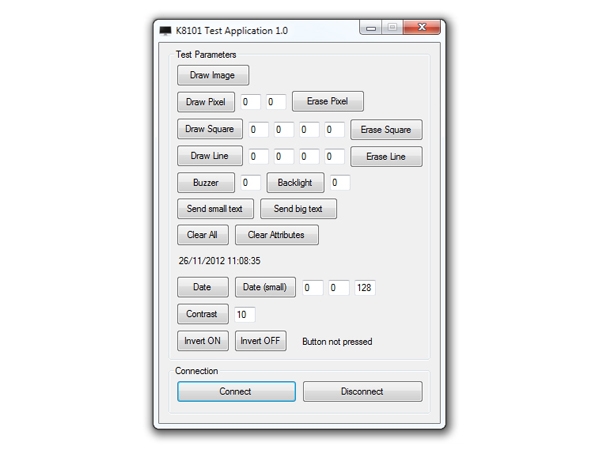

  • a test program (with source code) can also be downloaded to test all functions of the kit (button, backlight, buzzer, LCD draw routines)
  • available commands:
    • send images to the display (.BMP 128x64)
    • draw or erase pixels
    • draw or erase a square
    • draw or erase a line
    • activate the buzzer by sending a beep amount (0-255)
    • activate the backlight by sending an "ON-time" (0-254 sec / 255 = always on)
    • send small or big text
    • change the contrast
    • invert the display
    • clear everything but the background image
    • clear everything
    • do something on a short button press
    • do something on a long button press
  • Compatible with: Both 32-bit and 64-bit versions of Windows (2000/XP/Vista/7/8). Not suitable for Win 10
