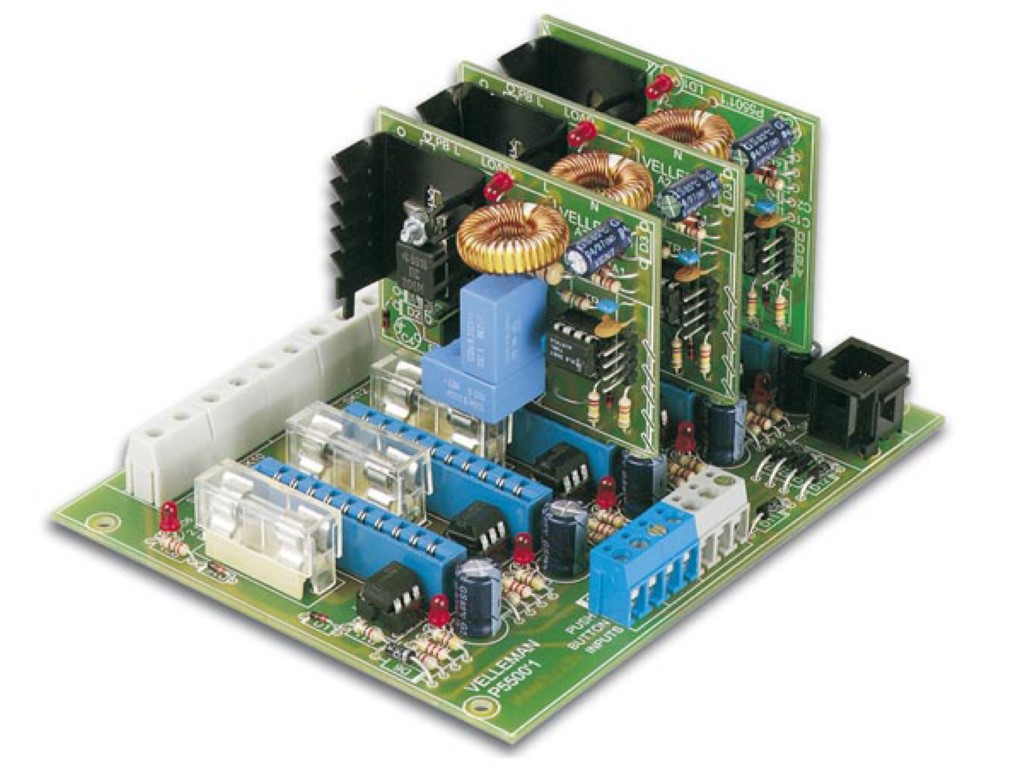

Domotica Light System - Busprint (Kit)

https://electronics123.odoo.com/web/image/product.template/4556/image_1920?unique=5013cf0
(0 review)

SKU : K8006
Quantity on Hand : 1
Skill Level : Kit - Complex Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

K8006

9.00 9.0 USD 9.00

9.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: Create your own domestic modular light control system. For use with optional plug-in module K8007, plug-in timer module K8008 or plug-in slow-on/slow-off module K8029. Bus system holds up to five plug-in units. Optically insulated push button inputs. Can be controlled with open collector circuits (ex. K8000RS computer interface card, with IR remote control receiver K8050 or with K8023). Local control pushbuttons included. LED power and mains indicator. LED operation indicator for each channel. Low-voltage (24V AC) control circuit for extra safety. Each plug-in slot is fused. Includes 10 LEDs for pushbutton illumination.

Specifications:

  • Five separated channels
  • Maximum output: 2.5A per channel (fuse protected)
  • Push button control current: 150mA
  • Open collector control current: 35mA DC
  • Power supply: 24V AC / 300mA
  • Supply voltage for modules: 110V to 240V AC
  • PCB dimensions: 4.2" x 6.3" x 2.8"
  • Recommended housing: -
  • Recommended transformer: -
