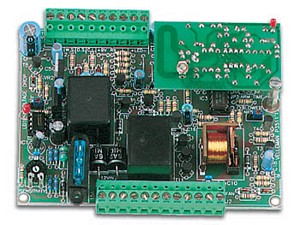

Remote Controlled Car Alarm System (RF) (Assembled)

(0 review)

SKU : K3511-TBA
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


173.38 173.38 USD 173.38


    This combination does not exist.

    Description: This outstanding car alarm is full of potential, able to connect up with and operate a variety of sensors. In addition, the remote control facility (RF) allows the central locking system to be operated together with the alarm.


    • Microprocessor technology

    • Multi-functional remote control operation

    • Audio and visual on/off indicators

    • Multifunction dashboard mounted LED

    • Automatic reset after alarm

    • Adjustable voltage drop (reaction to interior lighting)

    • Voltage drop detection active immediately, or after 5 minutes

    • Direct alarm trigger input (direct alarm after triggering)

    • Warning alarm trigger input (2 triggers within 15 seconds = alarm)

    • Warning input can be switched off with the remote control

    • Adjustable shock detector (can be switched off with the remote control)

    • Detector input for ventilator in order to avoid false alarms

    • Contact switches for bonnet and boot

    • Internal siren for on/off signal and alarm

    • Output for external siren and pager (5A)

    • Alarm time: 30 seconds

    • Starter interrupter for ignition or diesel fuel pump (15A)

    • Special starter motor interrupter relay (30A) supplied

    • Switch on protection if contact is on

    • Output to hazard lights (2 x 6A max.)

    • Output for central locking (100mA)

    • Selectable code for remote control transmitter and receiver (8.748 codes)

    • Automatically resets in the event of accidental switch off (60 seconds)

    • Diagnosis facility to identify a triggered sensor at a later time


    • Supply voltage: 12V DC

    • Consumption: 50mA in standby

    • Temperature range: -40 to +185 °F

    • Battery for remote control unit: 12V type V23GA, V23A (not incl.)

    • Recommended housing: G313

    • In option:

    • SP150 ignition cut-off system

    NOTE: Please allow 24 hours for assembly!
