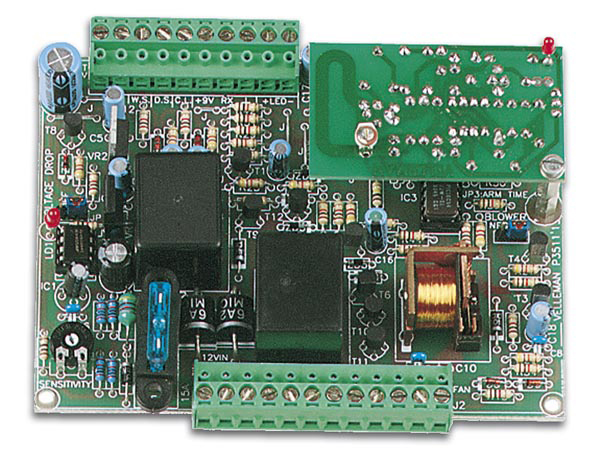

Remote Controlled Car Alarm System (RF) (Kit)

Description: This outstanding car alarm is full of potential, able to connect up with and operate a variety of sensors. In addition, the remote control facility (RF) allows the central locking system to be operated together with the alarm.

Features:

• Microprocessor technology

• Multi-functional remote control operation

• Audio and visual on/off indicators

• Multifunction dashboard mounted LED

• Automatic reset after alarm

• Adjustable voltage drop (reaction to interior lighting)

• Voltage drop detection active immediately, or after 5 minutes

• Direct alarm trigger input (direct alarm after triggering)

• Warning alarm trigger input (2 triggers within 15 seconds = alarm)

• Warning input can be switched off with the remote control

• Adjustable shock detector (can be switched off with the remote control)

• Detector input for ventilator in order to avoid false alarms

• Contact switches for bonnet and boot

• Internal siren for on/off signal and alarm

• Output for external siren and pager (5A)

• Alarm time: 30 seconds

• Starter interrupter for ignition or diesel fuel pump (15A)

• Special starter motor interrupter relay (30A) supplied

• Switch on protection if contact is on

• Output to hazard lights (2 x 6A max.)

• Output for central locking (100mA)

• Selectable code for remote control transmitter and receiver (8.748 codes)

• Automatically resets in the event of accidental switch off (60 seconds)

• Diagnosis facility to identify a triggered sensor at a later time

Specifications:

• Supply voltage: 12V DC

• Consumption: 50mA in standby

• Temperature range: -40 to +185°F

• Battery for remote control unit: 12V type V23GA, V23A (not incl.)

• Recommended housing: G313

• In option:

• SP150 ignition cut-off system

Hint:

• Do not mount C16.
