Component Test Option for HPS140MK2 Oscilloscope

  • WeightMajor
  • WeightMinor

44.95 44.95 44.95 USD


This combination does not exist.

Add to Cart

SKU : HPS141
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

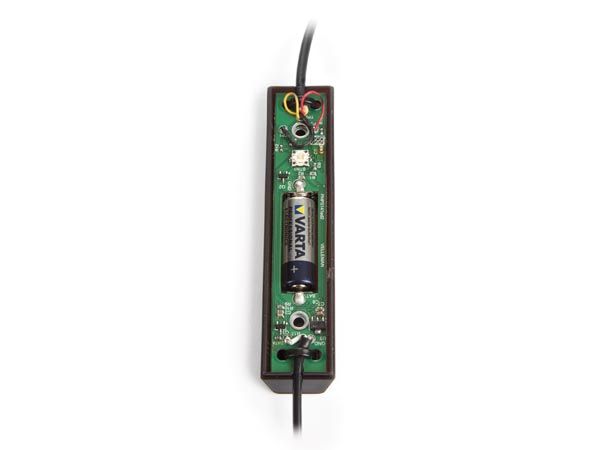

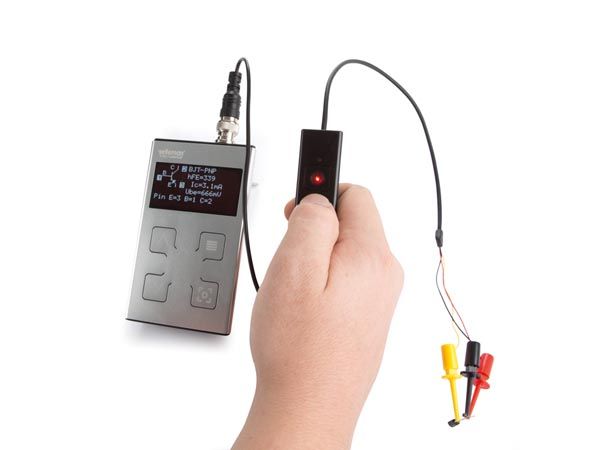

Description: Connect this easy to use component tester to your handheld oscilloscope (hps140mk2) and receive all useful information about resistors, transistors, diodes and more, including their pin out identification.


  • Dimensions: 23 x 96 x 15mm (W x L x H) (without cables)
  • Supported components: SCR, JFET, E-IGBT, D-IGBT, E-MOS, D-MOS, resistor, coil, capacitor, diode, transistor
  • Resistance resolution: 0.1Ohm (max 50 Ohm)
  • Capacitance range: 28pF to 100.000µF
  • Inductance range: 0.01mH to 20H
  • Standby current: 20nA
  • Power supply: 12V battery GP23A (included)
  • Test current: approx. 20mA
  • Test speed: 2 seconds


  • A single button test
  • A test indicator
  • Auto shutdown

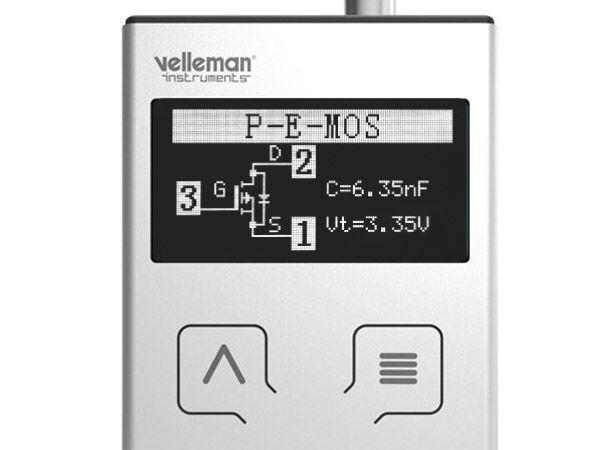

  • Shows pin layout
  • Handheld oscillopscope (HPS140mk2) needed (not included)
  • Only compatible with the HPS140mk2 (not included)
  • Battery included
  • Component analyzer with automatic pin out identification
